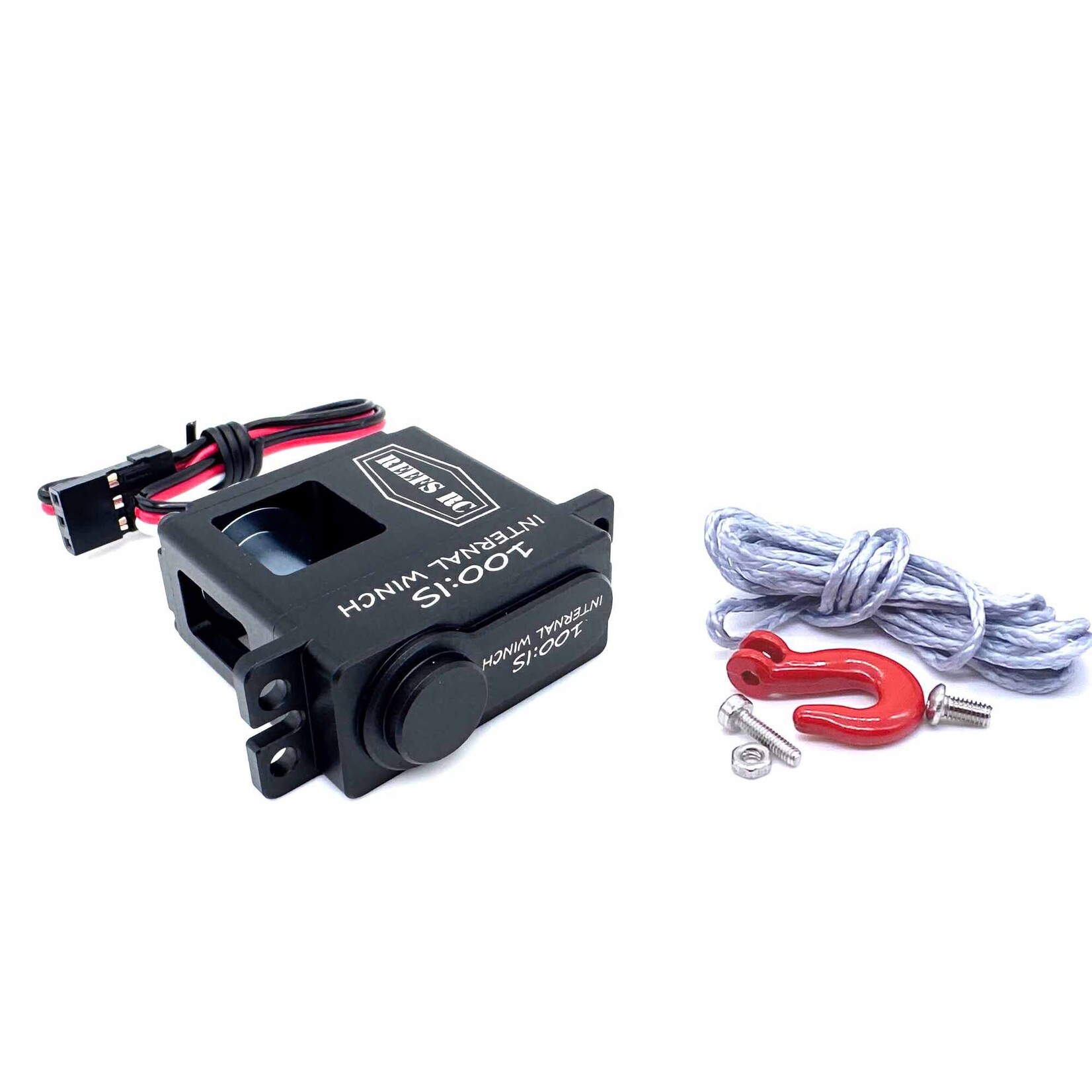

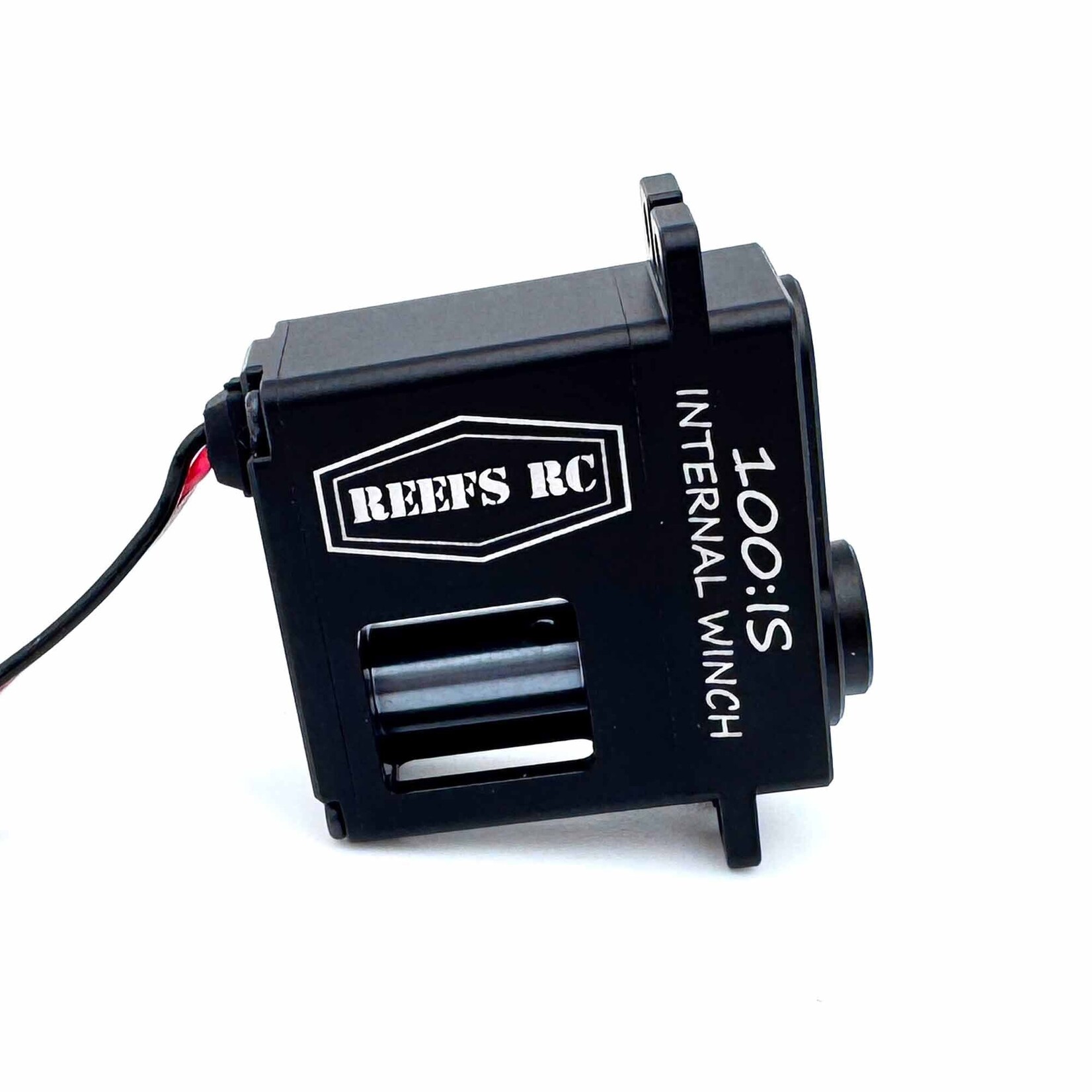

High Speed Brushless Servo Winch
BUILT IN PREPROGRAMMED WINCH CONTROLLER
Fully Programmable w/ REEFS Software
REEFS LINK required for Programming (OPTIONAL)
IP67 Waterproof: 6 Point Seals
Internal Machined Spool w/ Coated Finish
Approx. 6ft .8mm Synthetic Line w/ Scale Recovery Hook
CNC Aluminum Casing
Specifications:
Voltage: 4.8V - 8.4V
Internal: Steel Gears
Bearing Type: 3 Ball Bearings
Weight: 34g (1.19oz)
(LWH): 1.2 x .55 x 1.22 / 30 x 14 x 31mm
Torque: 97oz (7.0kg) @ 6v/ 111oz (8kg) @7.4v/ 132oz (9.5kg) @8.4v
Speed: .093sec @6v / .075sec @7.4v / .067sec @8.4v
Dead Band Width: 10uSec
BEC Not Req. (Recommended for max performance)
For programming, the USB Link is required.
