Servo Overview:

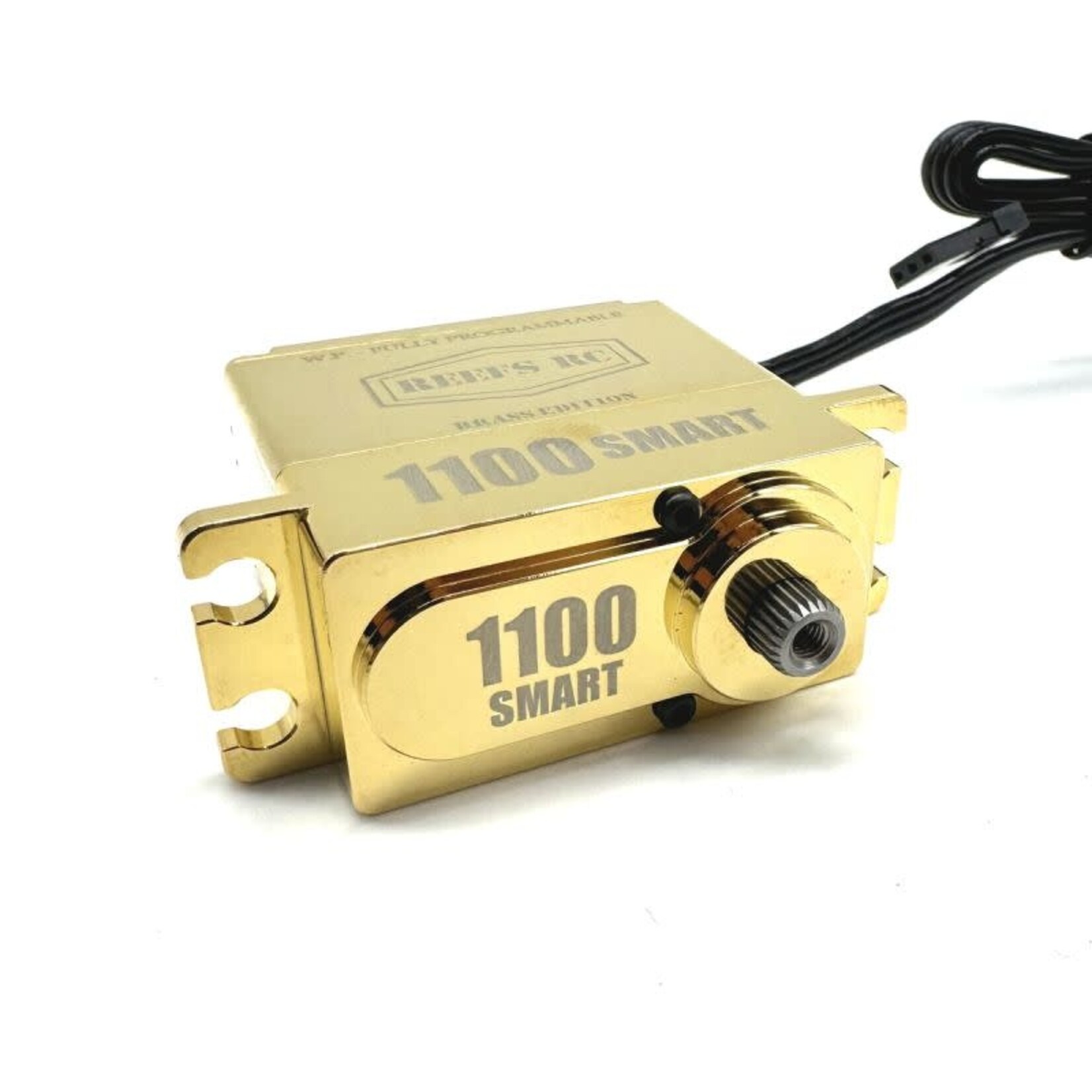

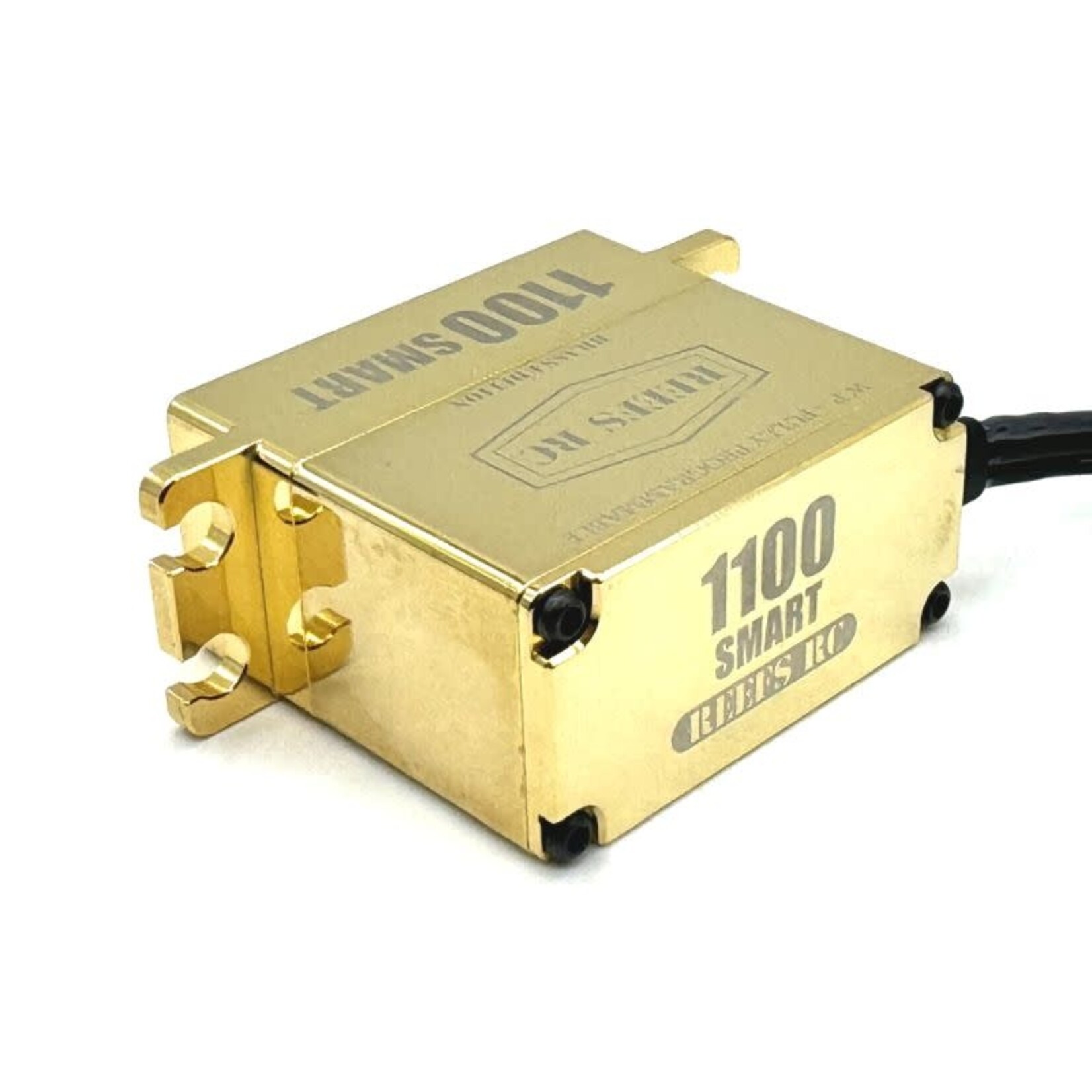

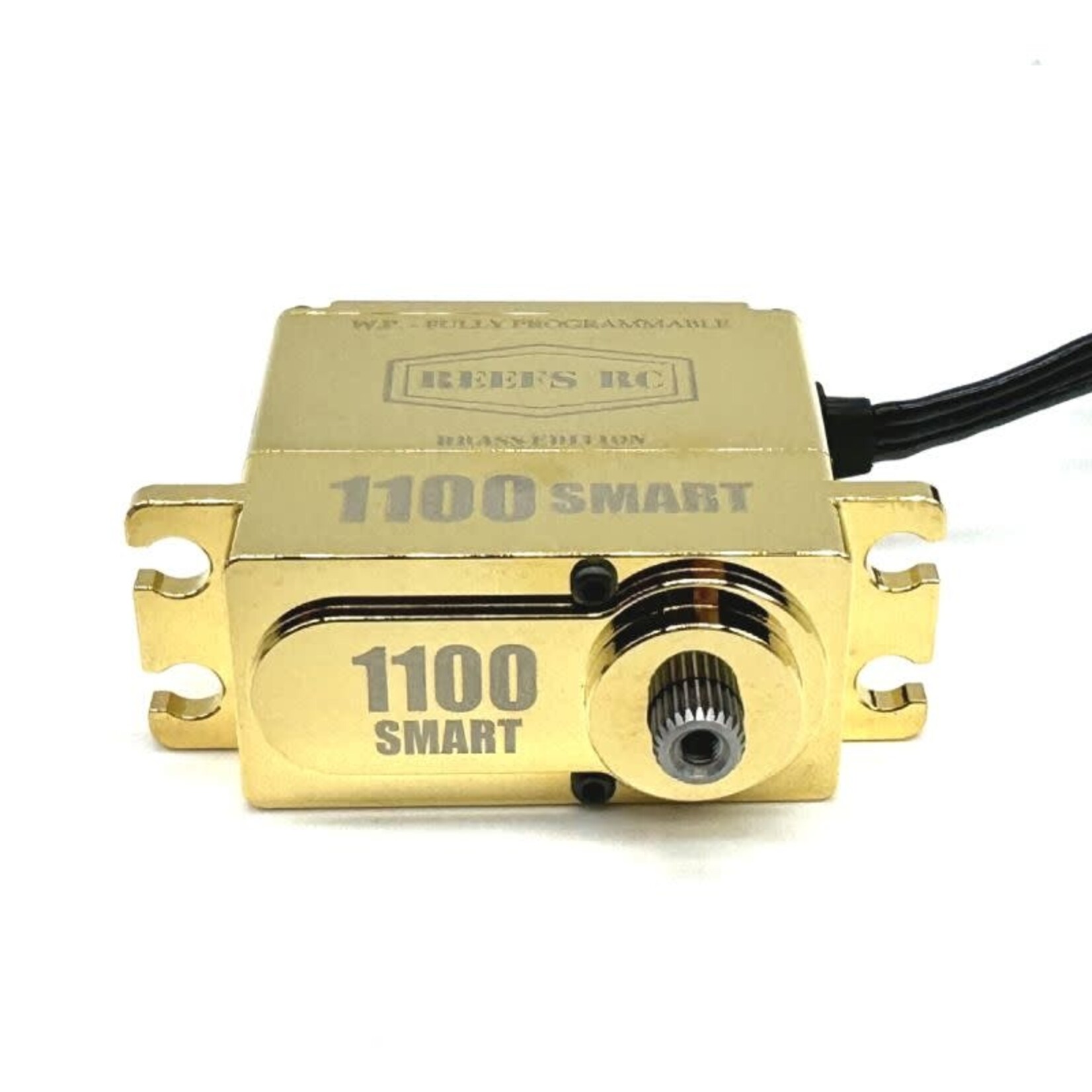

This is the Reefs RC 1100 Smart Brass High Torque and Speed Digital Brushless Steering and Winch Servo from Reefs RC, designed for high-torque, high-speed performance in demanding RC applications. With its monster torque output of 1100oz-in (79.2kg-cm) at 8.4 Volts, lightning speed operation of 0.12sec/60° at 8.4 Volts, fully programmable capabilities and robust construction, this servo offers exceptional reliability and precision for a variety of RC vehicles, from crawlers to boats! Additionally, the brass outer case construction provides a significant increase in weight, ideal for rock crawler applications.

Features:

• Powerful 4-Pole brushless motor
• Operates as a steering or winch servo (Default is Steering)
• Built-in preprogrammed winch controller
• "Submarine Waterproof" with 7-point seals
• High voltage capable
• Magnetic angle sensor
• Internal steel gears
• Heavy CNC Brass casing with "ULTRA" finish
• Fully Programmable with REEFS Software

Specifications:

• Suggested Application: 1/10, 1/8, 1/7 & 1/6 surface and boats
• Input Voltage: 4.8V-8.4V
• Speed:
• @6.0V: 0.16sec/60°
• @7.4V: 0.13sec/60°
• @8.4V: 0.12sec/60°
• Torque:
• @6.0V: 760oz-in (54.7kg-cm)
• @7.4V: 930oz-in (66.9kg-cm)
• @8.4V: 1100oz-in (79.2kg-cm)
• Motor: Brushless
• Dimensions(LxWxH): 1.57x.79x1.5in (39.87x20.06x38.1mm)
• Weight: 5.29oz (150g)
• Operating Spline: 25T

Includes:

• (1) 1100 Smart Brass High Torque and Speed Digital Brushless Steering and Winch Servo
• Assorted Servo Horns and Mounting Hardware
