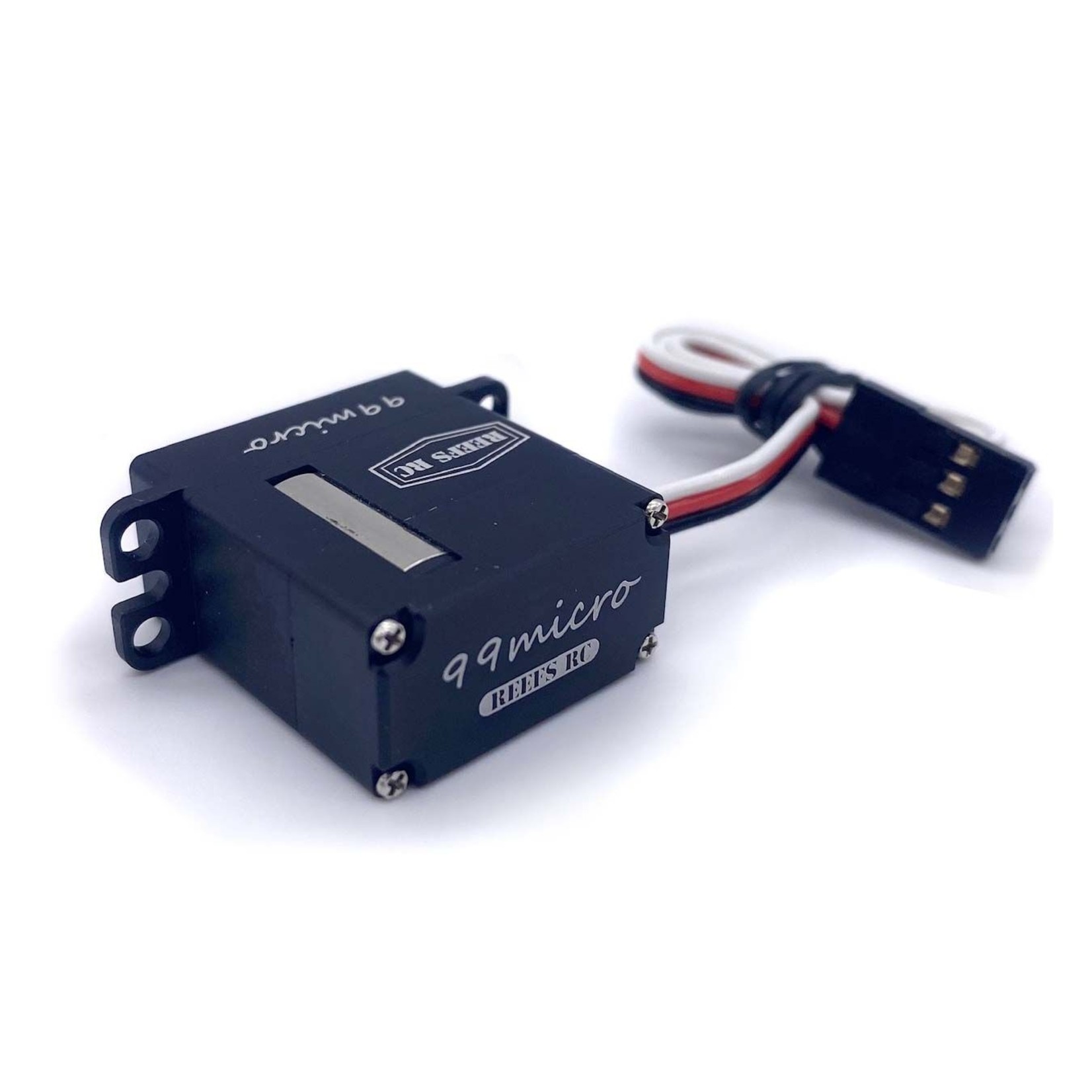

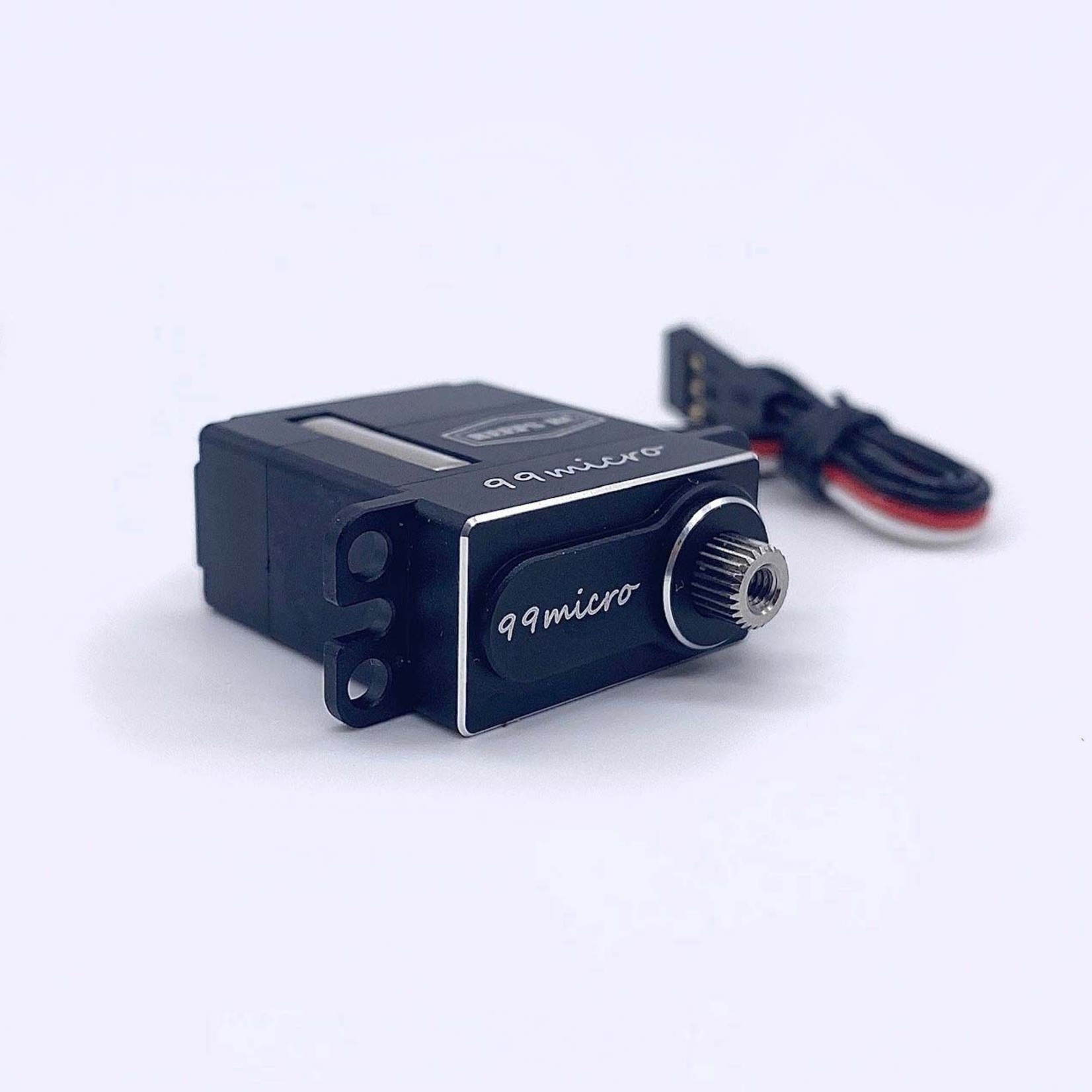

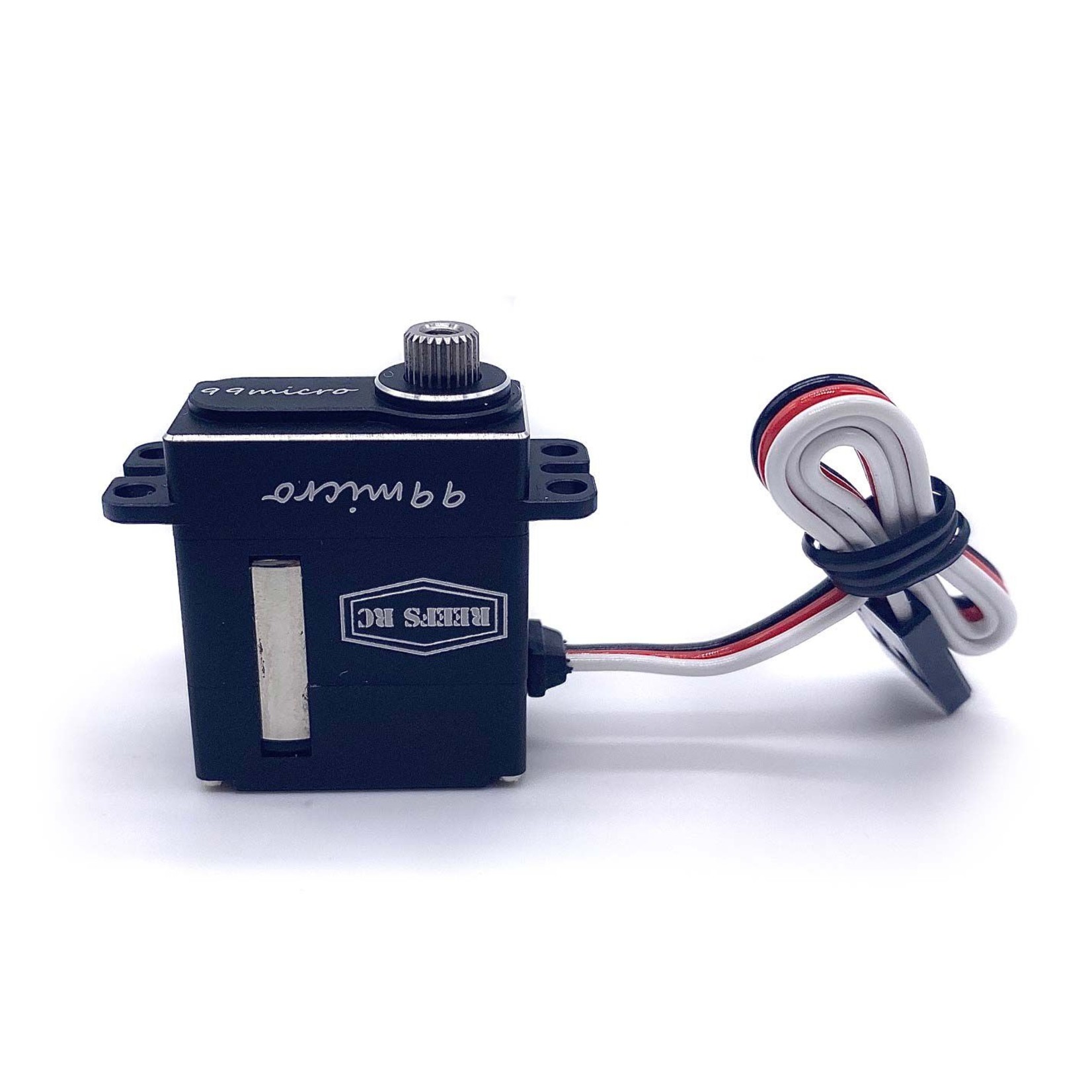

Reefs RC 99 Micro Servo

SKU: SEHREEFS25
$59.99
Excl. tax

The rating of this product is 0 out of 5

(0)
In stock

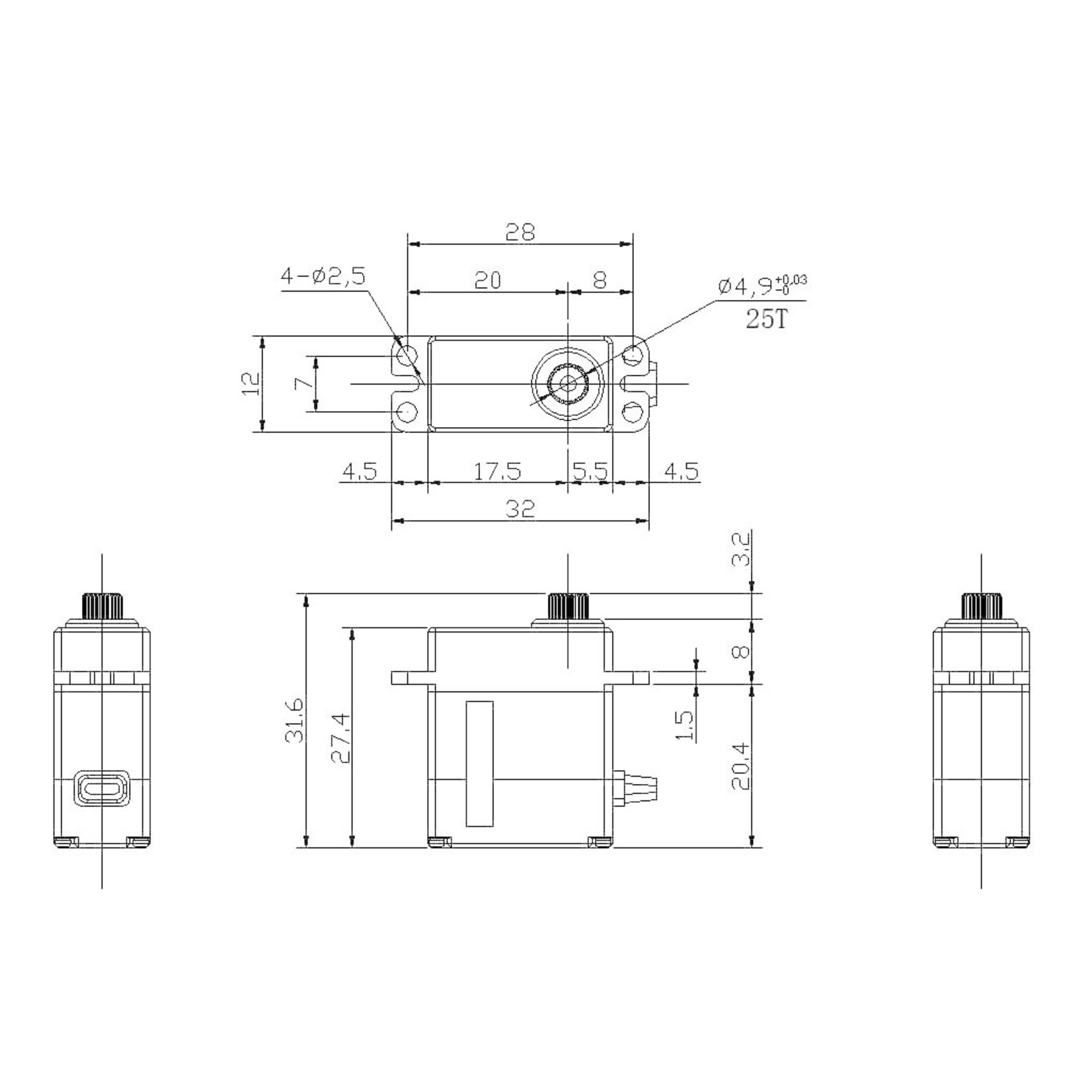

Specifications:

Product Width 0.47" (12 mm)
Input Voltage 6v-8.4v
Product Height 1.08" (27 mm)
Product Weight .70oz
Current Draw Stall Loading Current (Max Stall Current) 1600mA @ 4.8V 2000mA @ 6.0V 2200mA @ 7.4V 2400mA @ 8.4V
Product Length 0.9" (23 mm)
Current Draw Idle Unload Current 200mA @ 4.8V 350mA @ 6.0V 450mA @ 7.4V 550mA @ 8.4V
Max Servo Torque 100-199 oz-in
Maximum Servo Torque 89oz @ 6.0v / 99oz @ 7.4v / 115oz @ 8.4v
Bearing 2BB
Deadband Dead Band Width: 2¦Ìs
Spline Count 25 - Tooth
Maximum Servo Speed 0.050-0.099 sec
