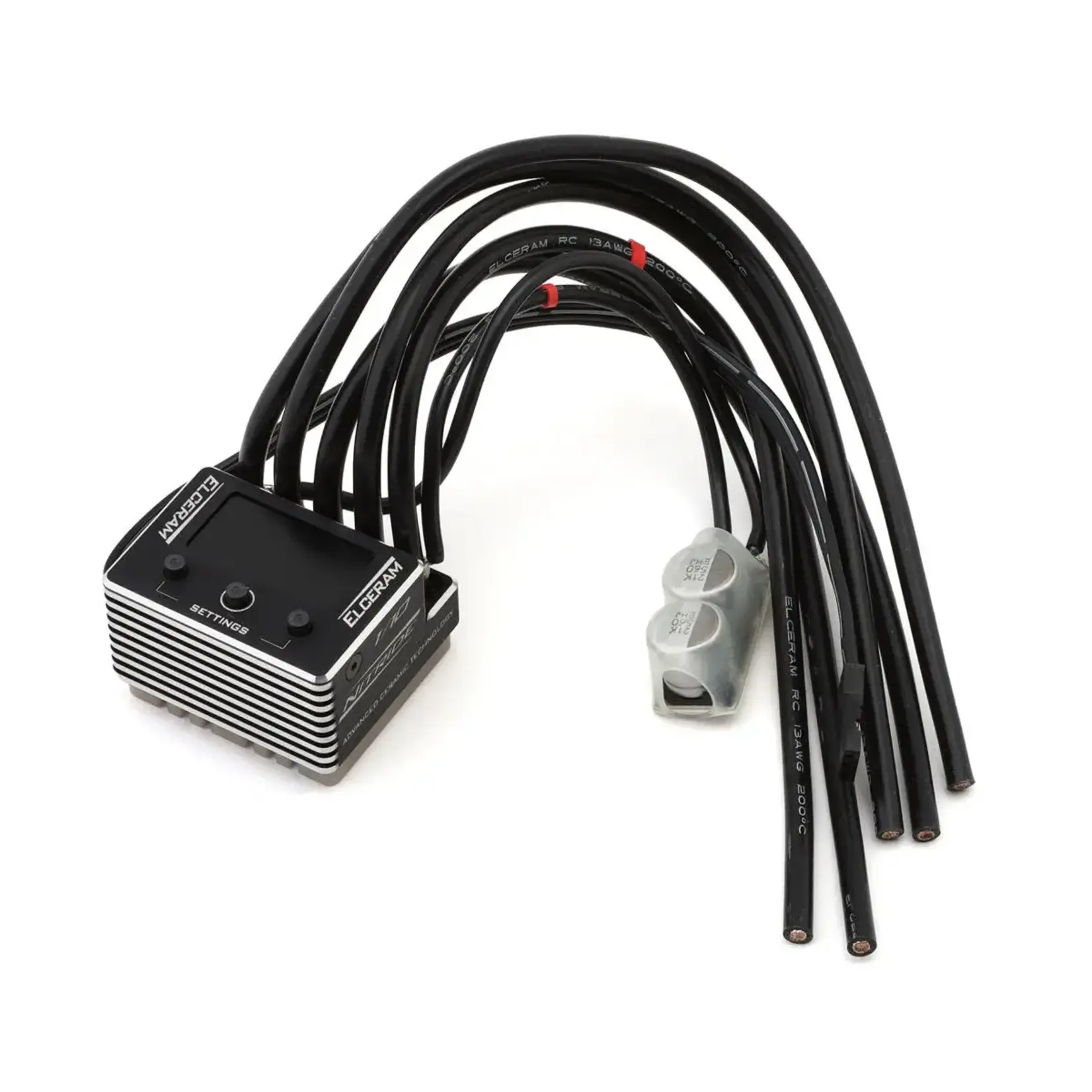

Elceram G2 Nitride 1/10 Brushless ESC w/Color LCD Display

SKU: ELC020

$309.99

Excl. tax

(0)

In stock (Delivery timeframe:Normally ships within 24 hours)

Features:

Advanced Aluminum Nitride cooling technology
Integrated TFT matte color LCD display
Three-button simple setup and programming
Real-time ESC, motor, and battery monitoring
Intelligent algorithms for system protection
Reverse polarity protection
Compact, lightweight design for all 1/10 applications
Pre-race and post-race diagnostic tools
Adjustable BEC voltage output (6.0–7.4V)
Zero timing (blinky mode) supported

Includes:

(1) G2 Nitride 1/10 Brushless ESC
(1) Aluminum Mounting Plate
(1) Set of External Capacitors
Connection Cables
Instruction Manual

Specifications:

Suggested Application	1/10
Motor Type	Brushless - Sensored
Input Voltage	2S LiPo (7.4V)
Continuous Current	180A
Burst Current	1500A
Dimensions (LxWxH)	1.34x1.44x0.95in (34x36.5x24mm)
Weight	2.08oz (59g)
Motor Limits	4.5T
BEC Voltage	6.0-7.4V (Adjustable)
BEC Continuous Current	6A
BEC Peak Current	12A
Motor Connector	Solder Type
Battery Connector	Solder Type
Motor Wire	-
Battery Wire	-
Programmable	Yes
