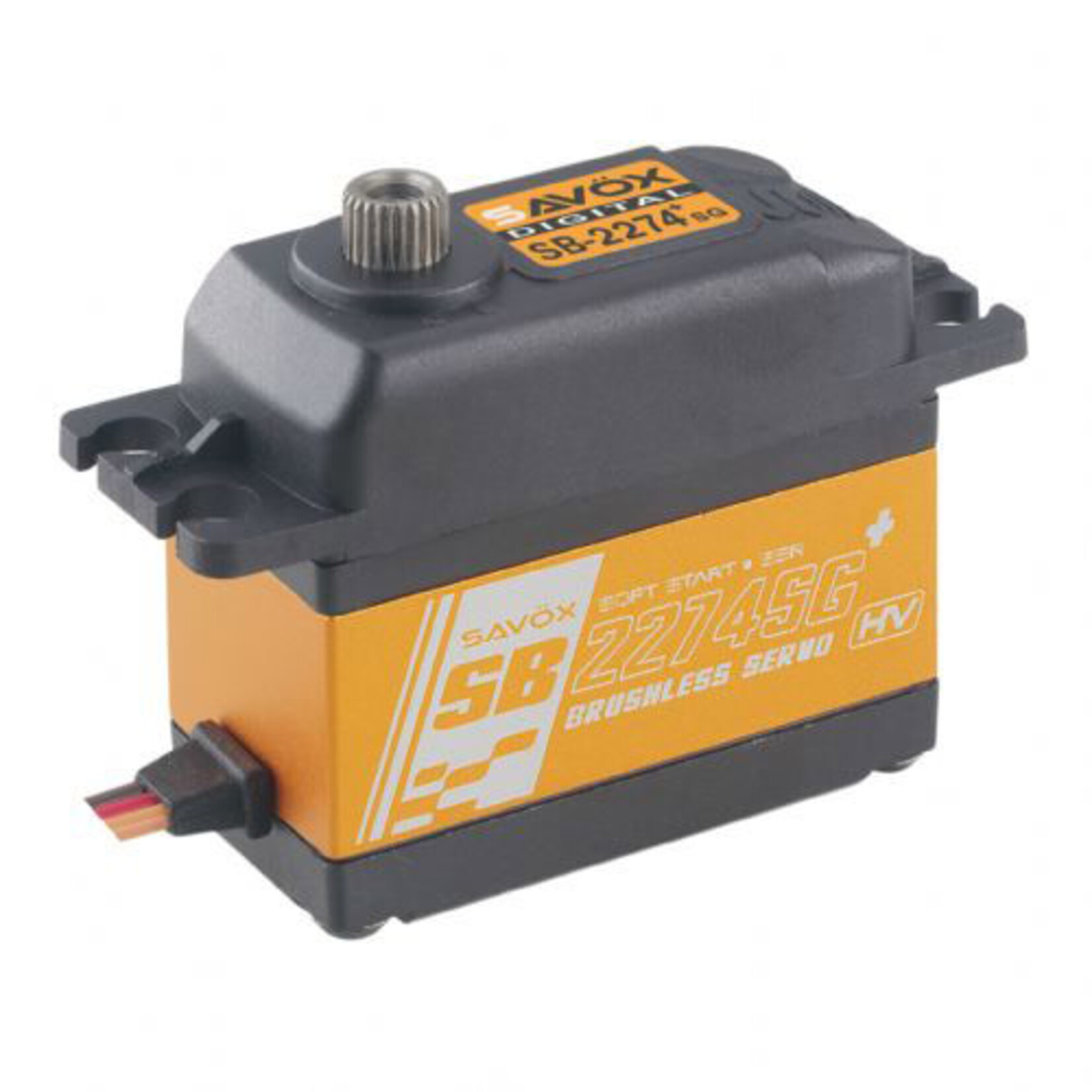

The Savox SB-2274SG High Voltage Brushless Digital Servo combines leading edge technology with super high 12 bit (4096) resolution.

"Plus" series servos feature Soft Start and Sanwa SSR compatibility.

Features:

• Unique steel gear train.
• Capable of HV operation.
• Brushless motor for smooth operation and efficiency.
• Ideal for 1/10, 1/8 buggies, and large scale aircraft.

Specifications:

• Torque @ 6V - 20.0kg/277.7oz-in
• Torque @ 7.4V - 25.0kg/347.2oz-in
• Torque @ 8.4V - 30.0kg/416.6oz-in
• Speed @ 6V - 0.105 sec/60 deg
• Speed @ 7.4V - 0.08 sec/60 deg
• Speed @ 8.4V - 0.07 sec/60 deg

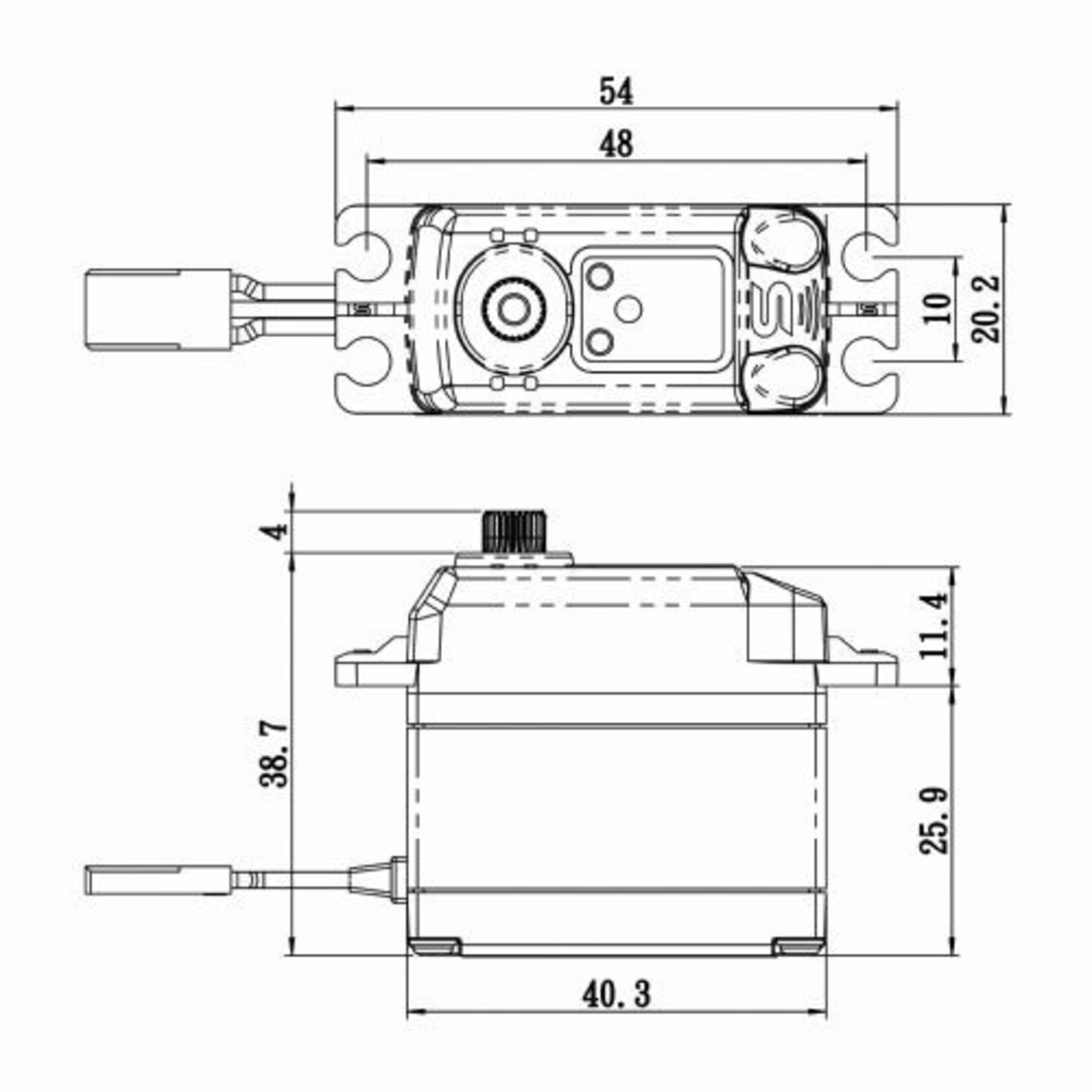

• Dimensions L x W x H (mm): 40.3 x 20.2 x 38.7
• Weight: 69g
