FuriTek MicroModo 2025 Brushless Power System Combo - Ascent18

SKU: FUR-2635
$99.99
Excl. tax

The rating of this product is 0 out of 5

(0)
In stock (Delivery timeframe:Normally ships within 24 hours)

About the Brushless Combo


Tailored Design for Redcat Ascent18

Specifically engineered to fit the tight confines of the Redcat Ascent18, this combo features an ultra-compact design that ensures seamless integration and optimal performance. Its streamlined layout maximizes space while providing the reliability needed for challenging terrains.

Advanced Brushless ESC Technology

The MicroPython ESC delivers state-of-the-art FOC control and live tuning via the Furicar app, ensuring ultra-smooth throttle response and precise adjustments.

High-Performance Micro Komodo Motor

Featuring a 12-pole hi-torque design and CNC machined aluminum heatsink, the Micro Komodo motor offers exceptional power conversion and efficiency. With precision-balanced rotor and Japanese NMB bearings, it is engineered to deliver maximum performance on rugged trails.

Features:

  • Tailored for Redcat Ascent18
  • Ultra-compact design
  • MicroPython ESC with FOC technology
  • Live tuning via Furicar app
  • Smooth throttle control
  • Built-in "BIG" BEC
  • 12-pole hi-torque motor
  • CNC machined aluminum heatsink
  • Japanese NMB bearings

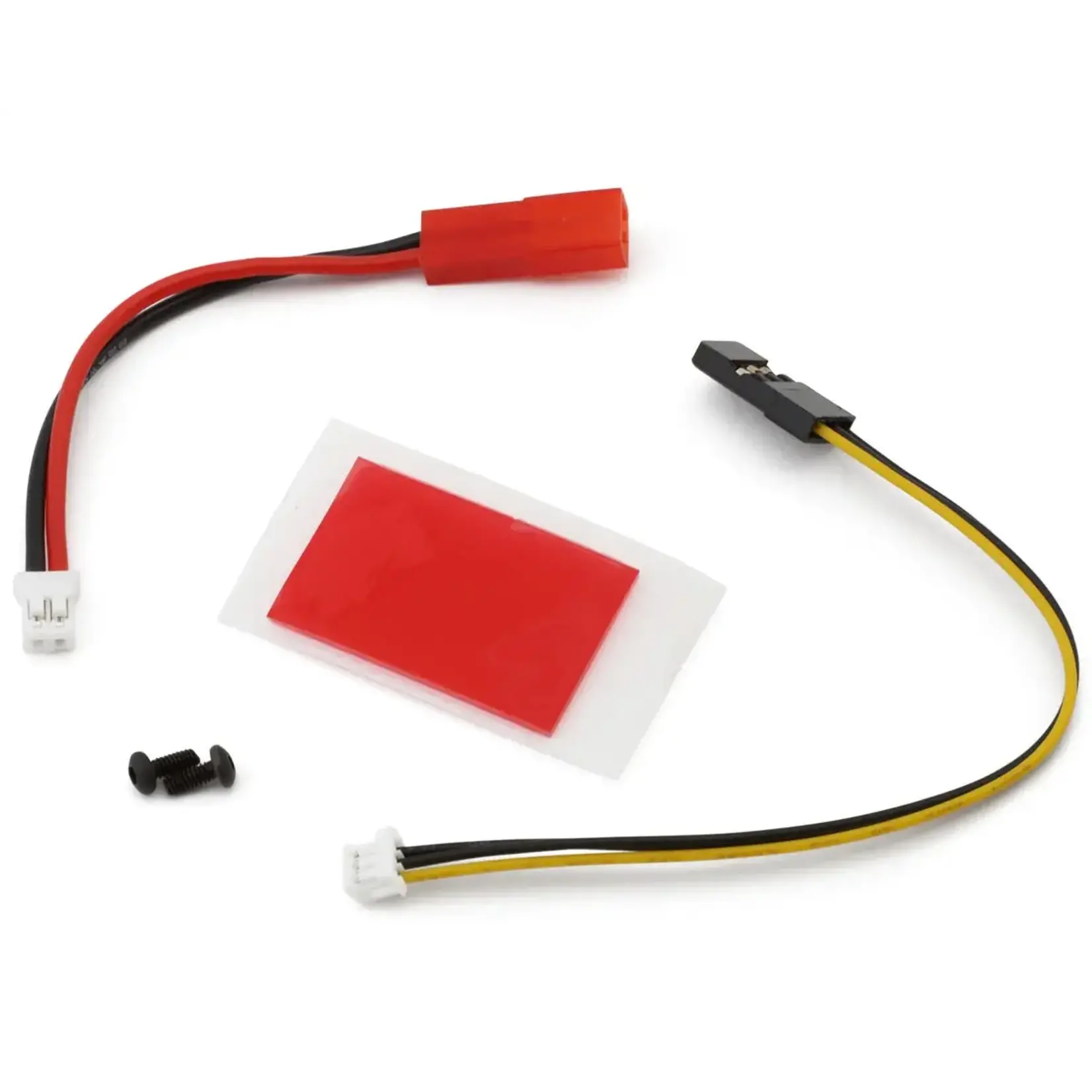

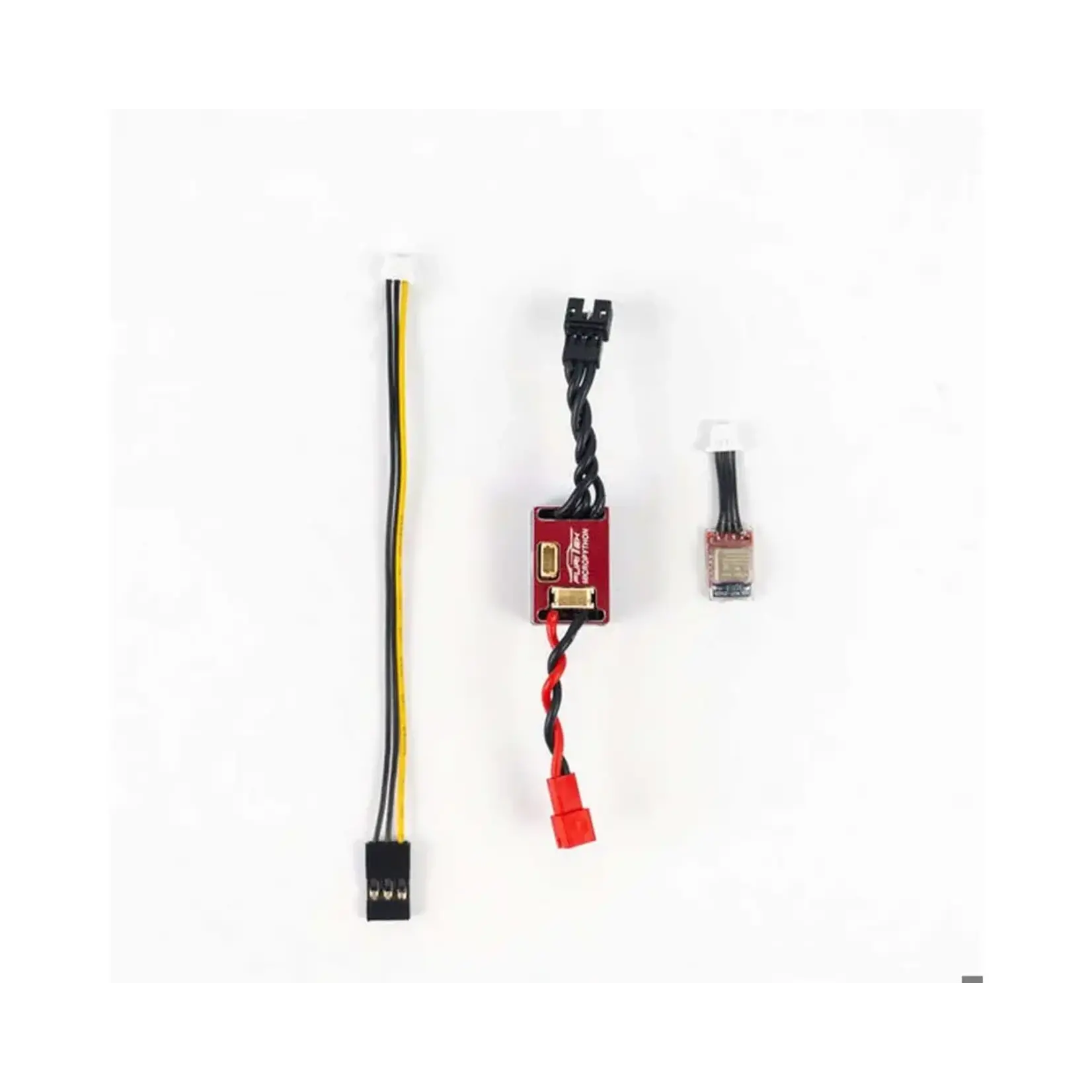

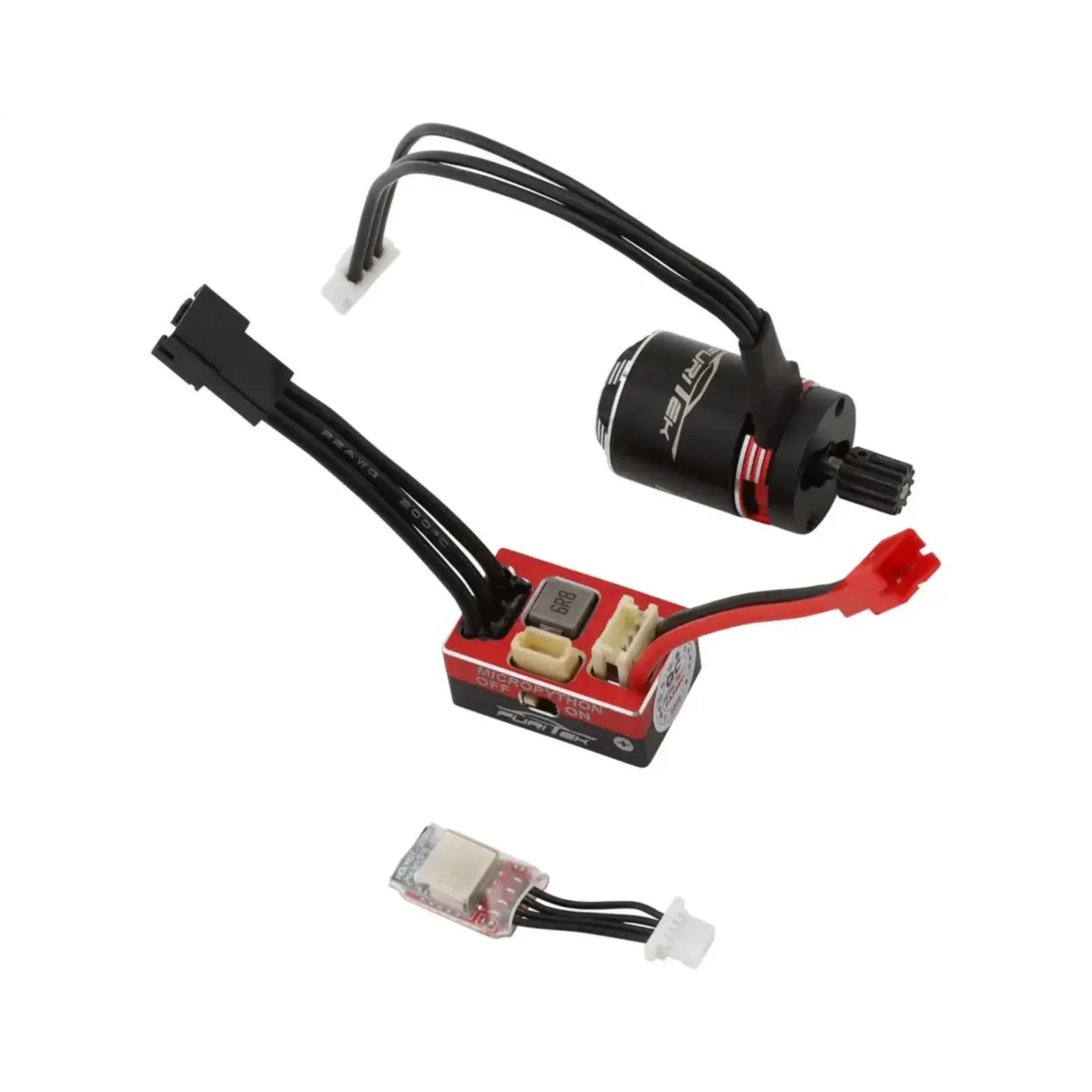

Includes:

  • (1) MicroPython ESC
  • (1) Micro Komodo Brushless Motor
  • (1) Wireless Module
  • (1) Receiver Plug
  • (1) User Manual
  • Mounting Accessories

Specifications:

ESC

Suggested Application             1/24 Crawler

Motor Type       Brushless

Input Voltage  2-3S LiPo (7.4-11.1V)

Continuous Current   25A

Burst Current 50A

Dimensions (LxWxH) 0.87x0.55x0.39in (22x14x9.8mm)

Weight 0.27oz (7.6g)

BEC Voltage    5.5-7.4V

BEC Continuous Current        -

BEC Peak Current        5A

Motor Connector         3 Pin

Battery Connector      PH 2.0



Motor

Suggested Application             1/24 Crawler

Size       3450kV

Type      Brushless

Voltage               2-3S LiPo

Adjustable Timing       No

Watts   120

Connector        3 Pin

Dimensions    0.61x0.81in (15.5x20.6mm)

Shaft Length   .24in (6mm)

Shaft Diameter             0.06in (1.5mm)

Weight 0.62oz (17.5g)
