NanoModo Brushless Control System: SCX30

Complete Brushless Power and Control System for Axial SCX30

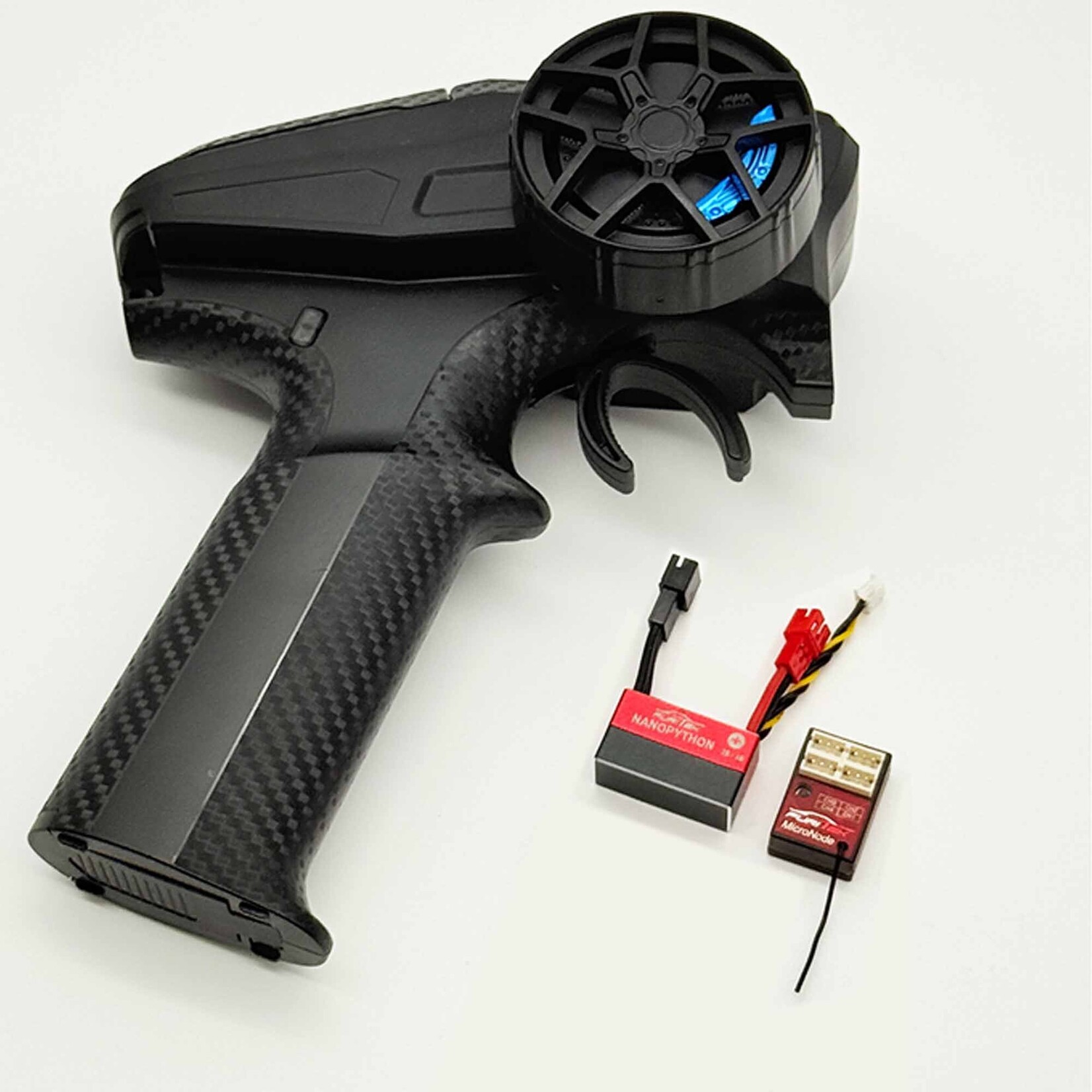

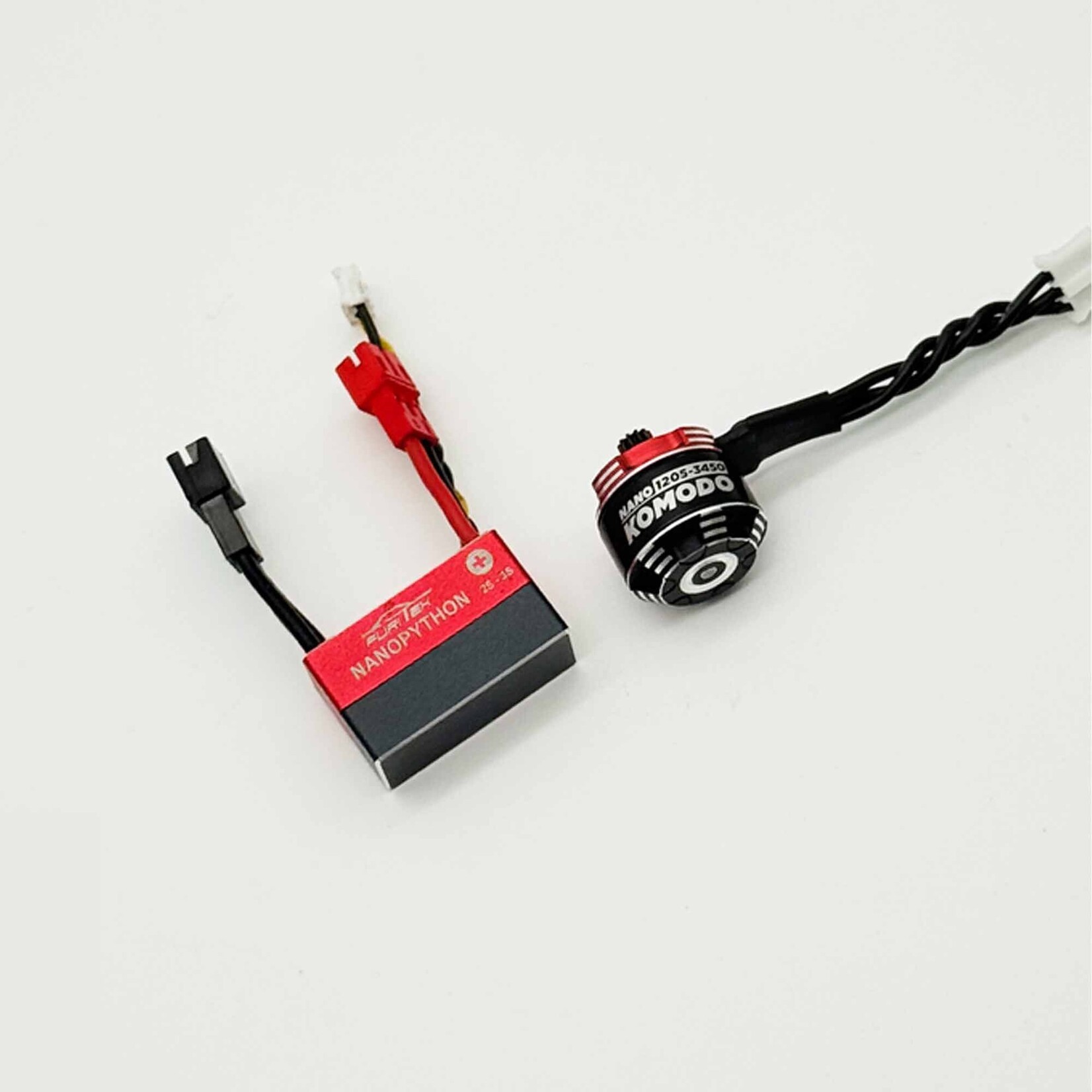

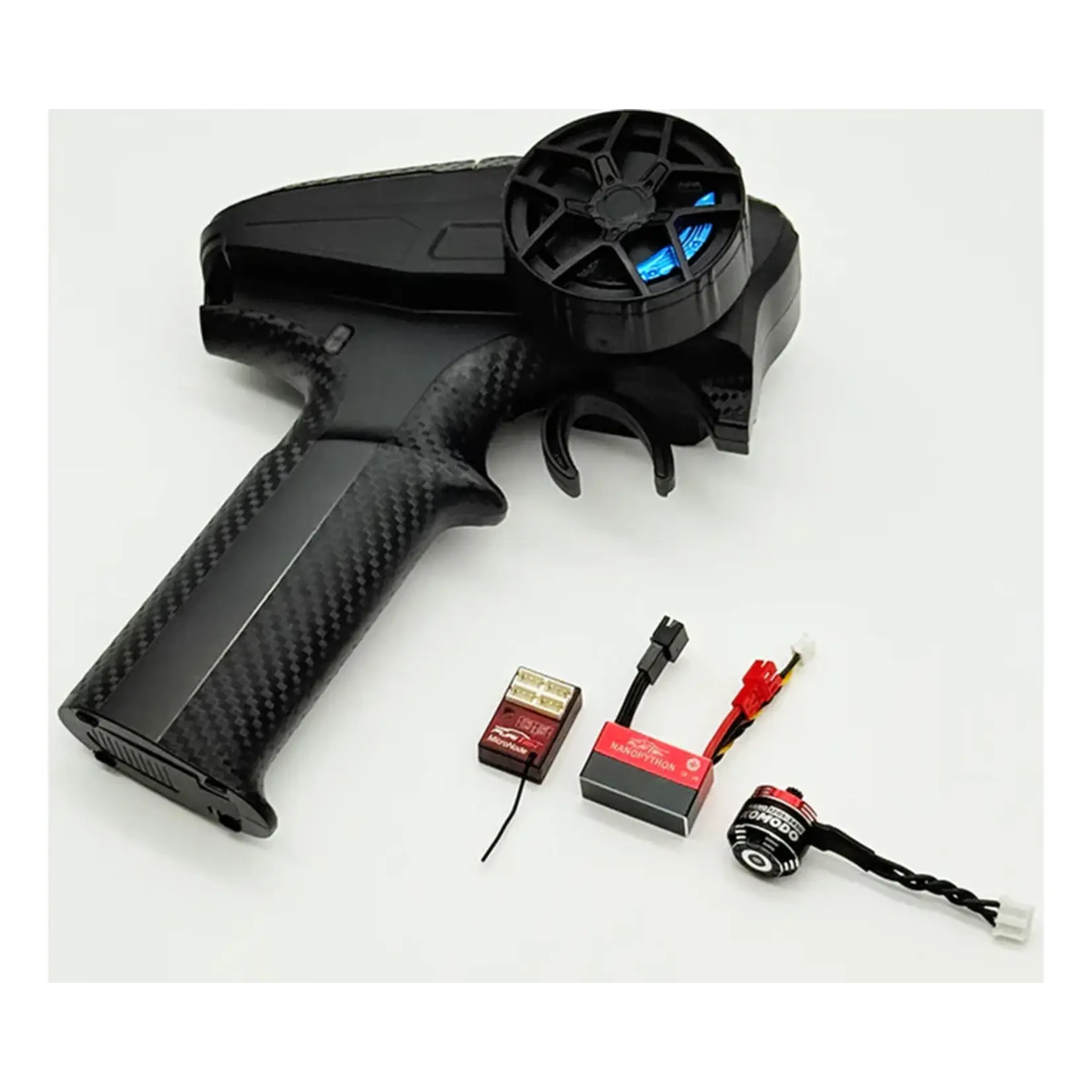

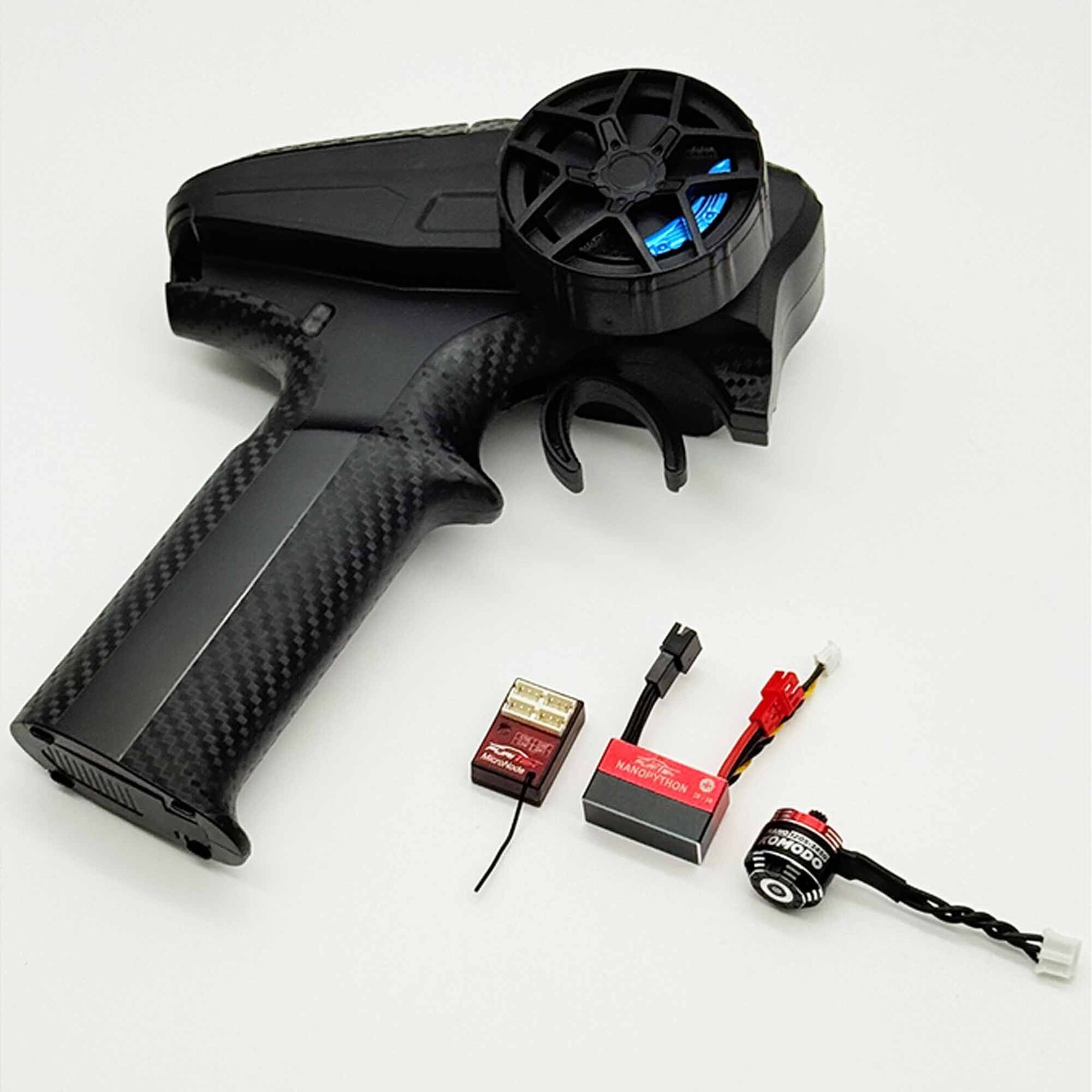

Introducing the Furitek NanoModo Control System, the next-generation all-in-one brushless upgrade designed exclusively for the Axial SCX30. This complete package combines the NanoPython Brushless ESC with built-in wireless tuning, the NanoKomodo high-torque brushless motor, and the powerful Furitek Gripor V2 4-Channel TX/RX System — delivering the ultimate in smoothness, precision, and compact power.

Why Choose the NanoModo Control System?

The Furitek NanoModo Control System is the most advanced, compact, and fully integrated brushless solution ever made for the Axial SCX30. It unites NanoPython ESC, NanoKomodo motor, and Gripor V2 TX/RX System into one intelligent ecosystem — offering unrivaled control, simplicity, and crawling performance. Power + Control + Intelligence — All in One. That’s NanoModo Control System.

Features

Includes NanoPython ESC, NanoKomodo Brushless Motor, and the Gripor V2 4-Channel TX/RX System — everything you need to power and control your SCX30 with superior smoothness and reliability.
The NanoPython ESC features an integrated wireless module for direct connection to the Furicar App on iOS & Android — allowing real-time tuning, telemetry, and firmware updates without cables or adapters.
Experience ultra-smooth startup, linear throttle response, and precise low-speed crawling powered by Furitek’s latest Field-Oriented Control (FOC) algorithm.
Optimized to fit perfectly into the tight chassis of the Axial SCX30, keeping your wiring clean and the build lightweight.

Built-in 5.5V / 7.4V 5A BEC provides reliable power for high-torque micro servos and accessories.
Designed for micro crawlers, the Gripor V2 offers precise 2.4 GHz control, smooth throttle and steering response, and customizable channel mapping.
Compact, ergonomic, and perfectly compatible with Furitek ESCs, it ensures responsive and stable performance for your SCX30 build.
Adjust ESC parameters, motor type, throttle curve, and more directly from your smartphone using the Furicar App — fast, easy, and wireless.

NanoPython Features

FOC (Field-Oriented Control technology)
Built-in wireless tuning module (connects via Furicar App on iOS & Android)
Super slow and ultra-smooth throttle response
New-generation firmware with optimized startup and FOC transition
Supports Brushed/Brushless motors (switchable via app, default brushless)

Powerful 5A BEC for high-torque servos
Ultra-compact and lightweight design
Easy tuning and monitoring via mobile app
Real-time telemetry up to 10Hz
Free lifetime firmware updates

NanoKomodo Motor Features

12-pole high-torque motor design
Ultra-thin 0.2mm stator laminations for reduced eddy losses and higher efficiency
Japanese NMB high-speed ABEC5 bearings for durability
Precision-balanced rotor for exceptional smoothness and reliability

CNC-machined 6061-T6 aluminum heatsink can for superior cooling
High-purity copper windings for maximum power and thermal stability
Optimized torque curve for micro crawler gearing and SCX30 drivetrain

Furitek Gripor V2 4CH TX/RX System Features

2.4 GHz 4-channel digital radio system
Compact ergonomic transmitter for micro and mini crawlers
Smooth linear throttle and steering response

Programmable channels and endpoints
Lightweight receiver optimized for Axial SCX30
Plug-and-play compatibility with NanoPython ESC
