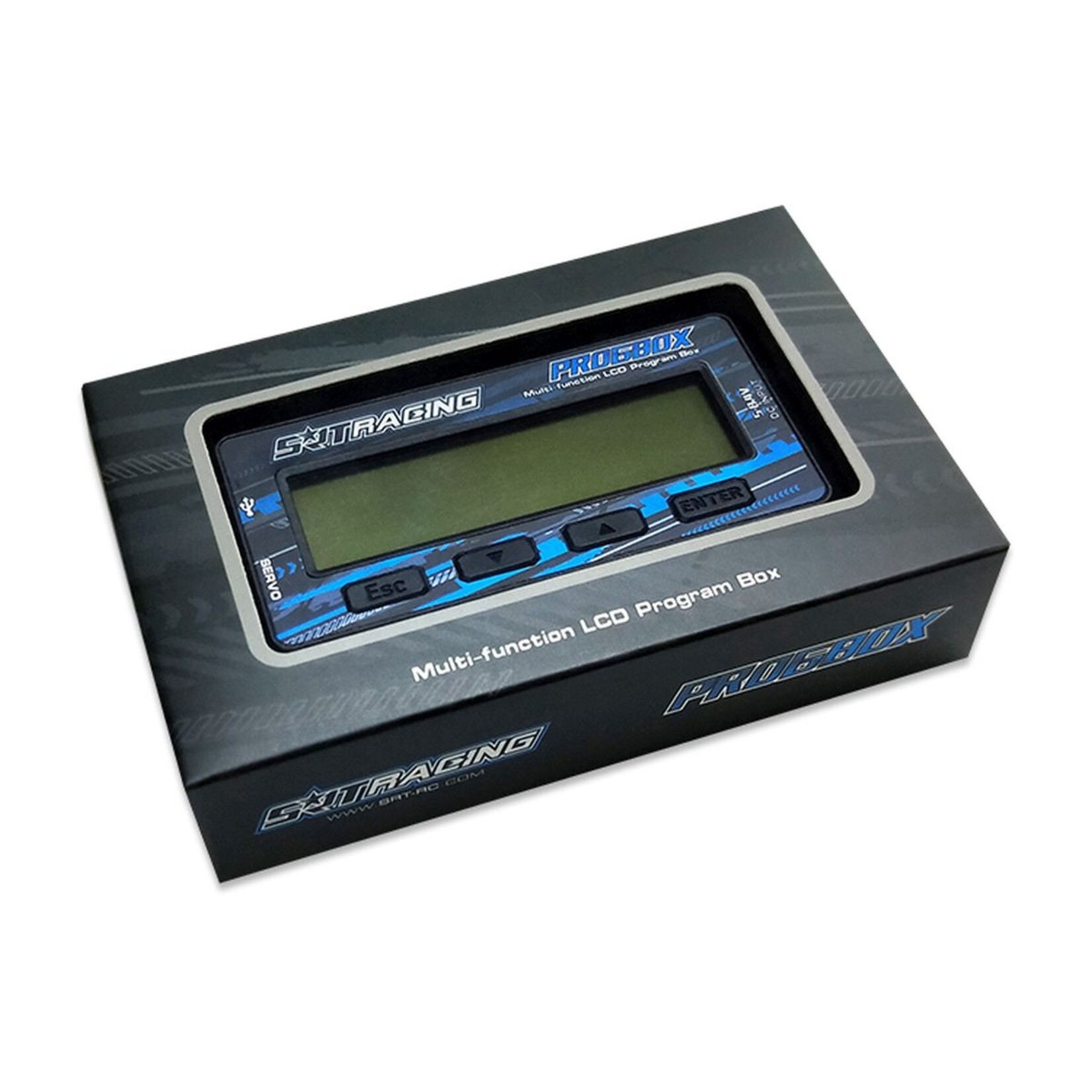

Program Box
Product Functions:
1. Servo parameters setting
2. Connect the computer to set the servo
3. Servo testing

Features:
Program box SP-MX082 has built-in high-performance 32-bit microprocessing, small size, simple and convenient operation.
Connect the servo through the program box for parameter setting, so that the servo can adapt to different track conditions.
Program box can store 20 sets different servo parameters.
The program box has the function of central point adjustment, which makes the left and right angles of the chassis more consistent.
Servo Testing: servo board band and narrow band PWM testing function.
DEFAULT: one-key restore factory parameter function.
Apply to a variety of SRT servos with programming marks, such as: BH815S, BH922S, BH927S, CH712S, D1S, W35, W45, T45, T55, T65, T75, BHX6, BHX8, BHX9, Min6

Specifications:
Operating Voltage: 5-8.4V DC
Idle Current: <20mA
Operating Temperature: 0-40deg C
Storage Temperature: -10-60deg C
Storage Humidity: 20-75%RH
Weight: 40g
Dimensions: 87.0x47.0x12.0mm
