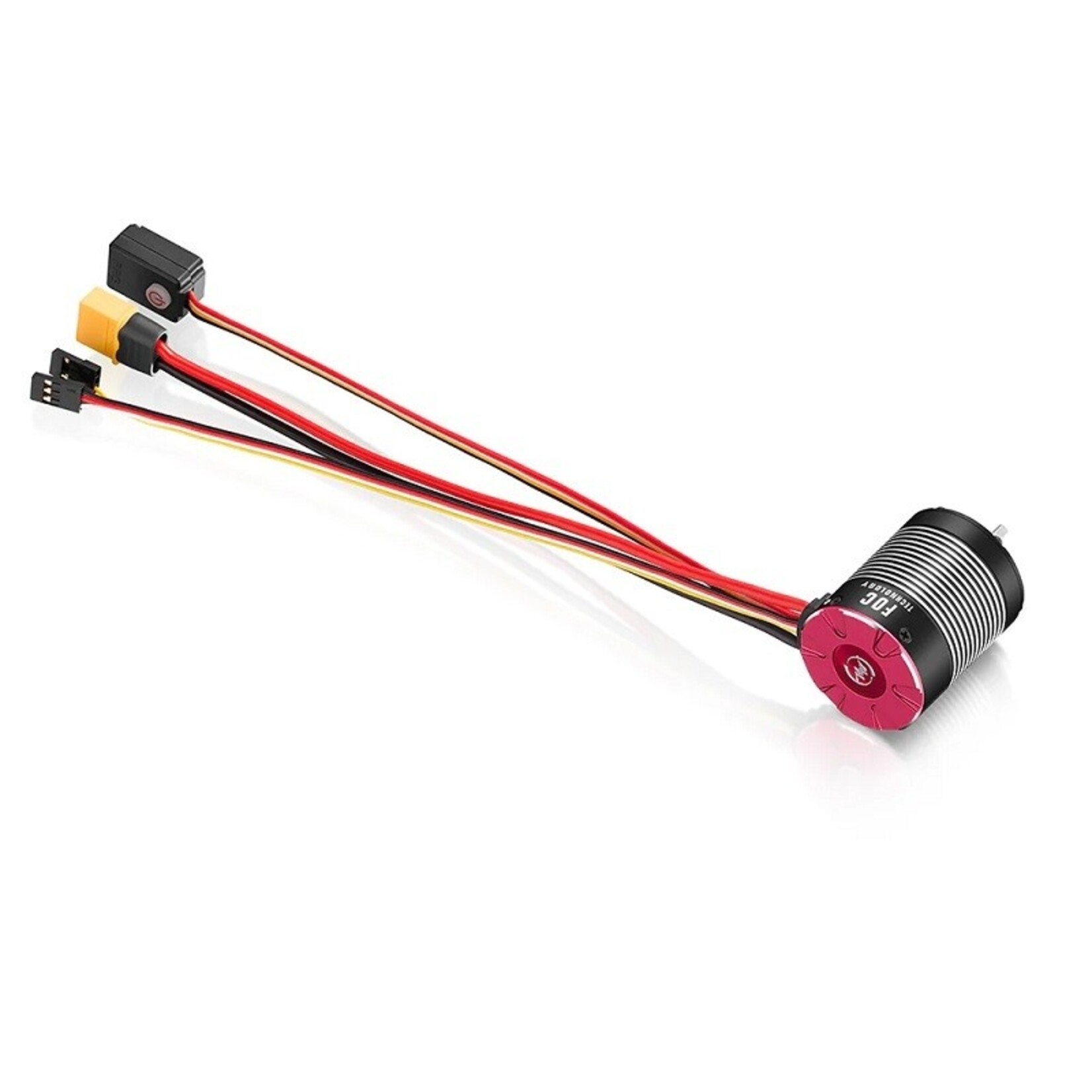

The Hobbywing QuicRun Fusion Pro Elite combines a powerful brushless motor and FOC (Field Oriented Control) ESC into one compact unit for unmatched crawling performance and simplicity. Designed specifically for scale trail and rock crawlers, this 2-in-1 system delivers ultra-smooth throttle control, precise low-speed handling, and quiet operation. The Fusion Pro Elite features a sealed design for improved durability, smart torque output for enhanced climbing ability, and advanced thermal protection. Its plug-and-play setup eliminates complex wiring while maintaining top efficiency and reliability. Whether you’re upgrading your crawler or building a high-performance rig, the Fusion Pro Elite offers the perfect blend of power, control, and refinement.

Includes:

• 1x FOC motor w/ built-in ESC
• Factory-installed XT60 plug
• 1x Decal and Manual
• 1x Heatshrink kit, double-sided tape, and zip ties.

Features:

• Featuring an ultra-short integrated design with a length of just 48.5 mm, this motor is 9.5 mm shorter than the Pro Standard version and 1.3 mm shorter than the AXE 540. It fits most 10th-scale crawler chassis on the market, allowing for cleaner, more streamlined wiring layouts.
• FOC (Field-Oriented Control) Driving Mode: The FOC driving mode enhances the power system of rock crawlers, delivering strong low-speed torque. This provides superior performance compared to standard brushless setups and is even preferred over brushed setups for overall feel.
• The system offers high efficiency, reduced heat, and extended runtime, with the motor running quietly and smoothly.
• The entire system has an IP67 protection grade, enabling operation in all conditions.
• Intelligent torque output and speed closed-loop control ensure precise handling.
• Active drag brake force adjustment provides superior holding power on inclines.
• The strong built-in switch-mode BEC supports continuous/peak current up to 5A and adjustable voltages of 6V, 7.4V, or 8.4V, capable of driving high-torque and high-voltage servos.
• Real-time parameter adjustments are possible using the transmitter's AUX channel.
• Multiple protection functions include battery low-voltage protection, overheat protection, throttle loss protection, and lock-up protection.
• The system supports LED and LCD Program Box Pro/G2 for convenient ESC parameter settings.

Specifications:

• Continuous/Peak Current: 50A/150A
• Main Applications: 1/10 Crawler
• LiPo/NiMH Cells: 2-4S LiPo, 6-12 Cells NiMH
• BEC output: 6V/7.4V/8.4V adjustable, continuous current 5A (Switch mode)
• Size/Weight: 37mm (diameter) x 48.5mm (length)/178.5g (including wires & connectors)
• Programming port: Independent programming port (switch position)
• Motor KV: 2300KV
• Diameter/Length of motor: 37mm/48.5mm
• Shaft diameter/exposed shaft length: 3.175mm/16mm
• Motor Poles: 4
