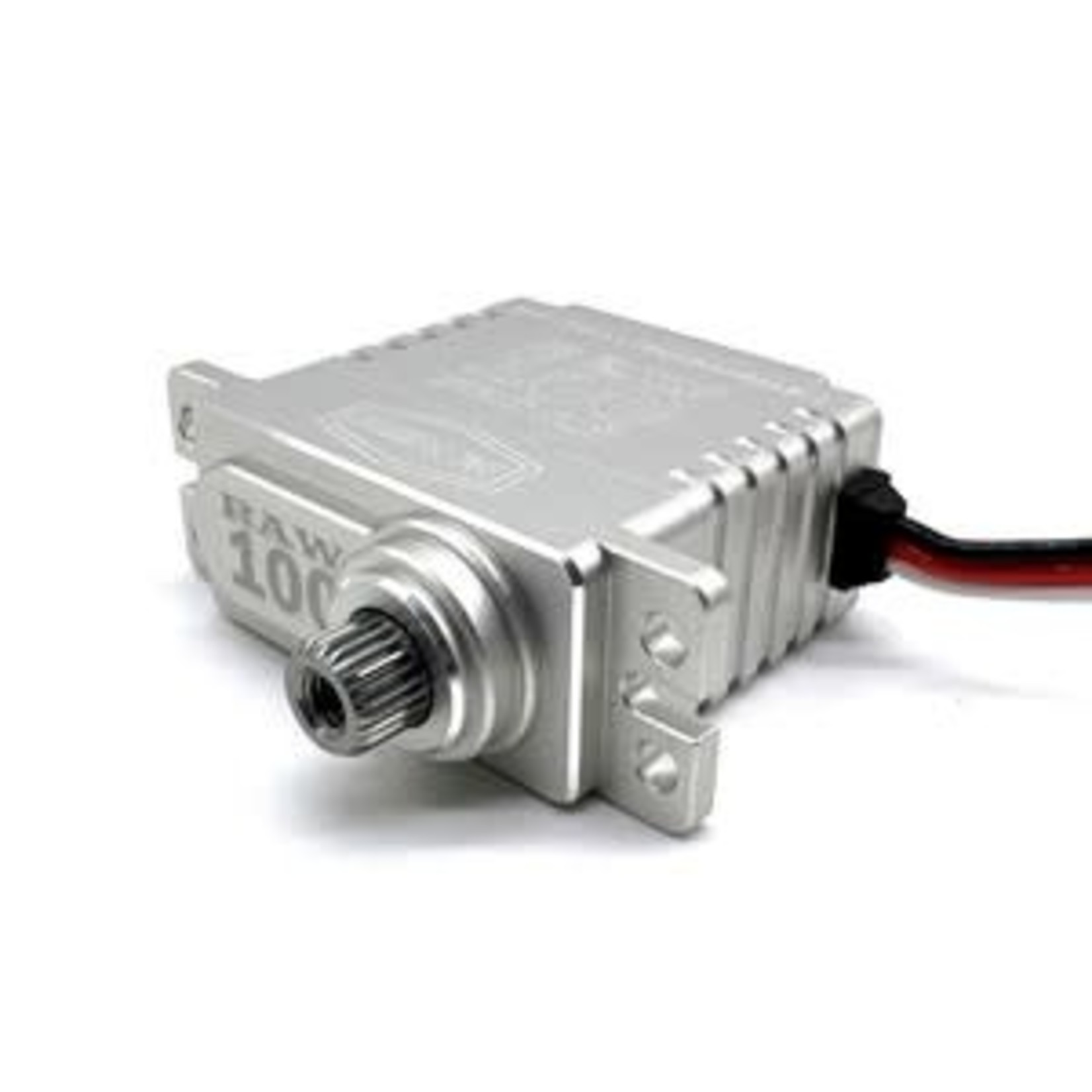

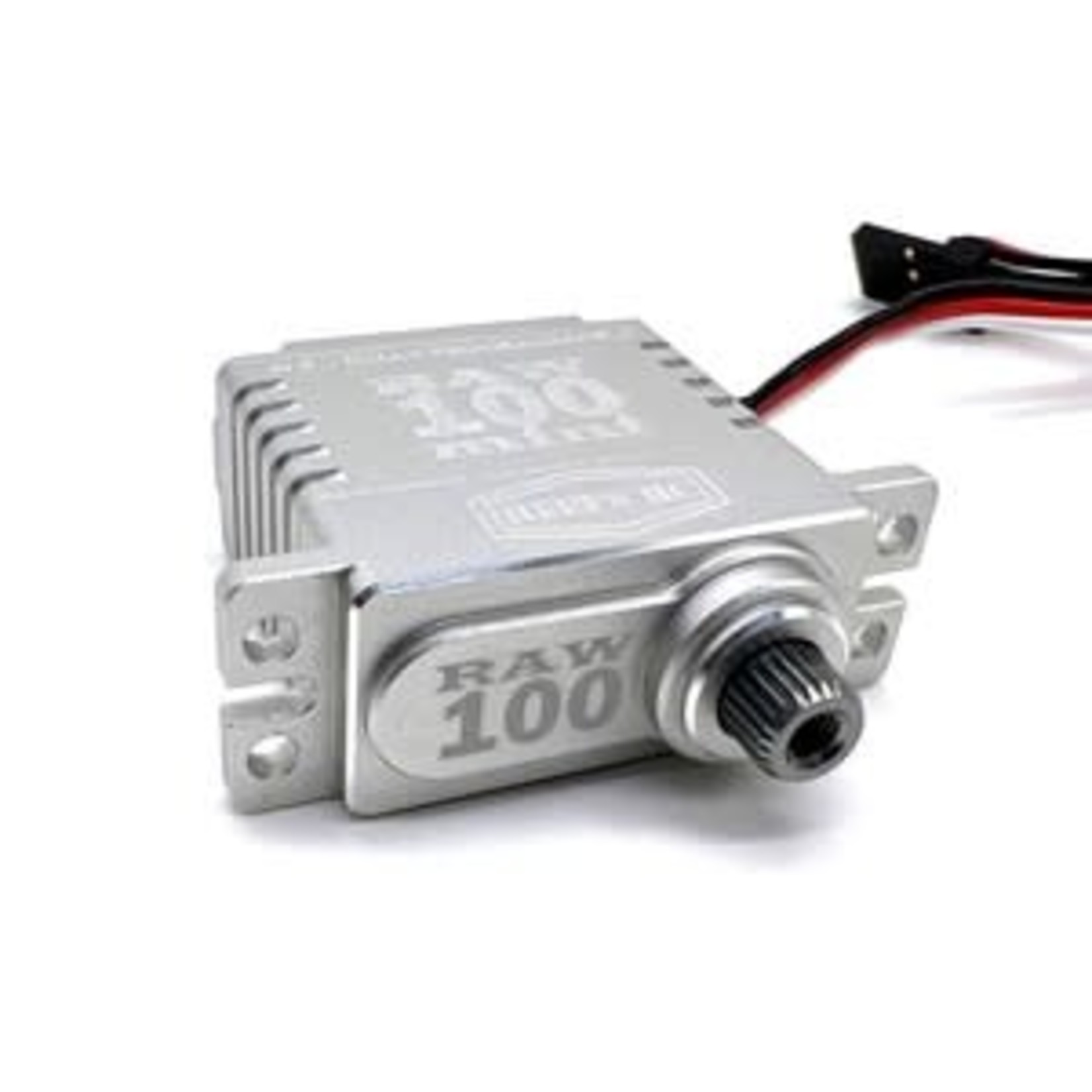

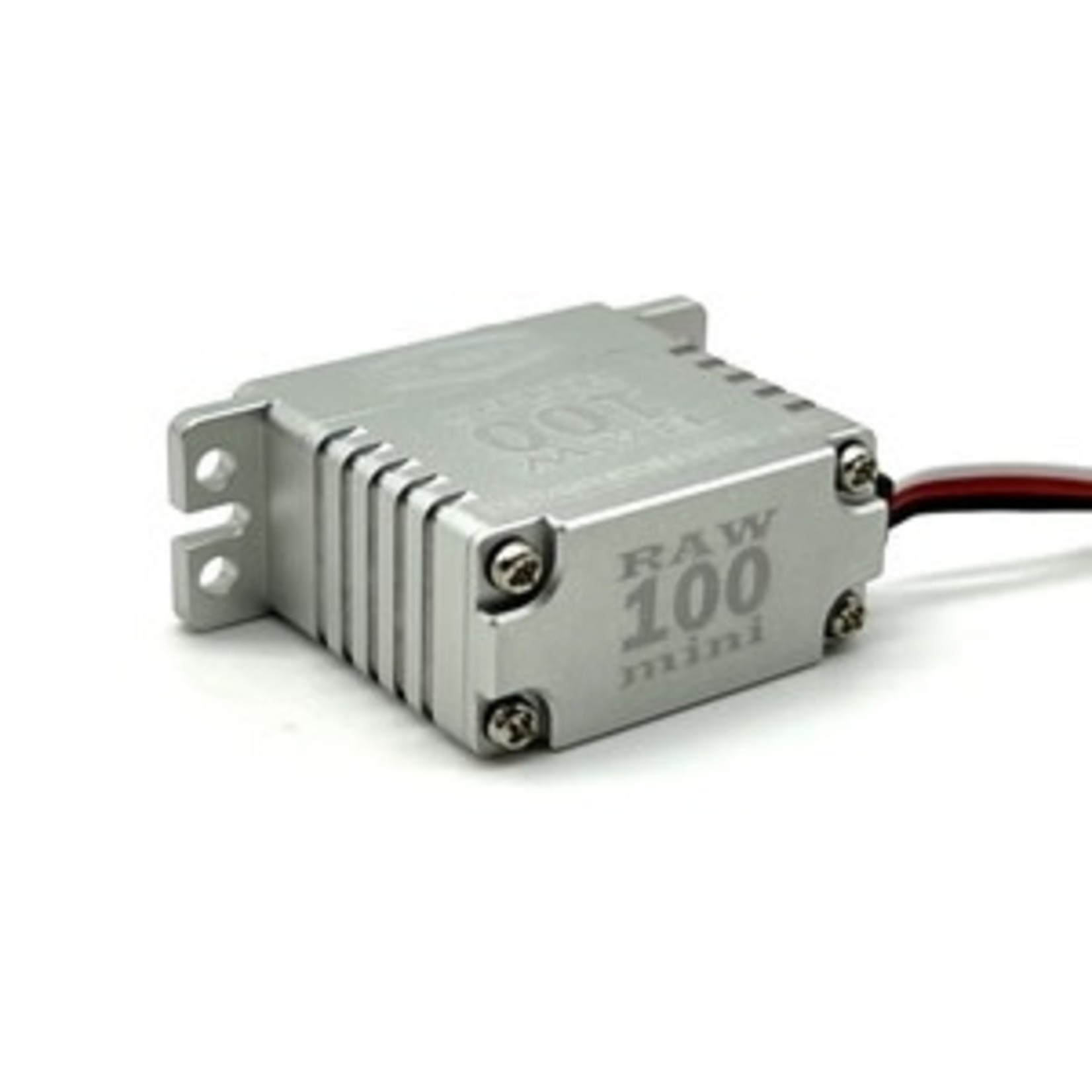

RAW 100 Mini Servo Programmable

Reefs RC RAW 100 Mini Servo Programmable

SKU: SEHREEFS134

$89.99

Excl. tax

REEFS RC RAW 100 Mini Servo is a powerhouse in a small package. The heatsink all aluminum waterproof case design ensures it is ready to go for any application. The servo is fully programmable with REEFS LINK (sold separately).

Features:

High Torque High Speed Mini Coreless Servo
Submarine Waterproof
Magnetic Angle Sensor, Pulse Width Modulation Control
REEFS LINK required for Programming
Temp Rate: -15C ~ +70C
Voltage: 6V-8.4V; Dead Band Width: 2microseconds

Specifications:

All Metal Gears, CNC Aluminum Casing with integrated Heat Sink design, Bearing Type: 2BB, 25T Spline
Dimension (LWH):1.16x.55x1.14in / 29.5x14x29mm, Weight: 1.05oz / 30g
Torque: 85oz-in @ 6.0V/95oz-in @ 7.4V/103oz-in @ 8.4V
Speed: .11sec @ 6.0V/.10sec @ 7.4V/.08sec @ 8.4V
Unload Current: 180mA/200mA/230mA/260mA @ 4.8V/6.0V/7.4V/8.4V
Load Current: 1.2A/1.4A/1.5A/1.8A @ 4.8V/6.0V/7.4V/8.4V
