NOTE:

• Not recommended for rock bouncers or bashers
• The power connection plug, or power switch on your ESC, must be disconnected and turned off when not in use to prevent damage to the servo and/or battery! Not recommended to power using balance plug

Features:

• Black anodized all CNC-machined aluminum Case
• Water Resistant
• Hardened Stainless Steel Gears
• Direct Power Superior Efficiency
• 4-Pole Custom Brushless Motor
• Industry Leading 5-Gear Design
• Magnetic Angle Sensor
• High voltage (HV) capable

Specifications:

• Type: Standard Low-Profile
• Motor Type: 4-Pole Brushless sensored
• Operating Voltage: 8.4V - 16.8V
• Gears: Hardened Stainless Steel
• Spline: 25T
• Dimension (LxWxH): 40x30x20mm
• Weight: 70g
• Case: CNC-Machined Aluminum
• Torque:
• 8.4V: 634oz-in / 46kg-cm
• 12.6V: 912oz-in / 66kg-cm
• 16.8V: 1115oz-in / 80kg-cm
• Speed:
• 8.4V: 0.15 sec/60°
• 12.6V: 0.11 sec/60°
• 16.8V: 0.09 sec/60°

Includes:

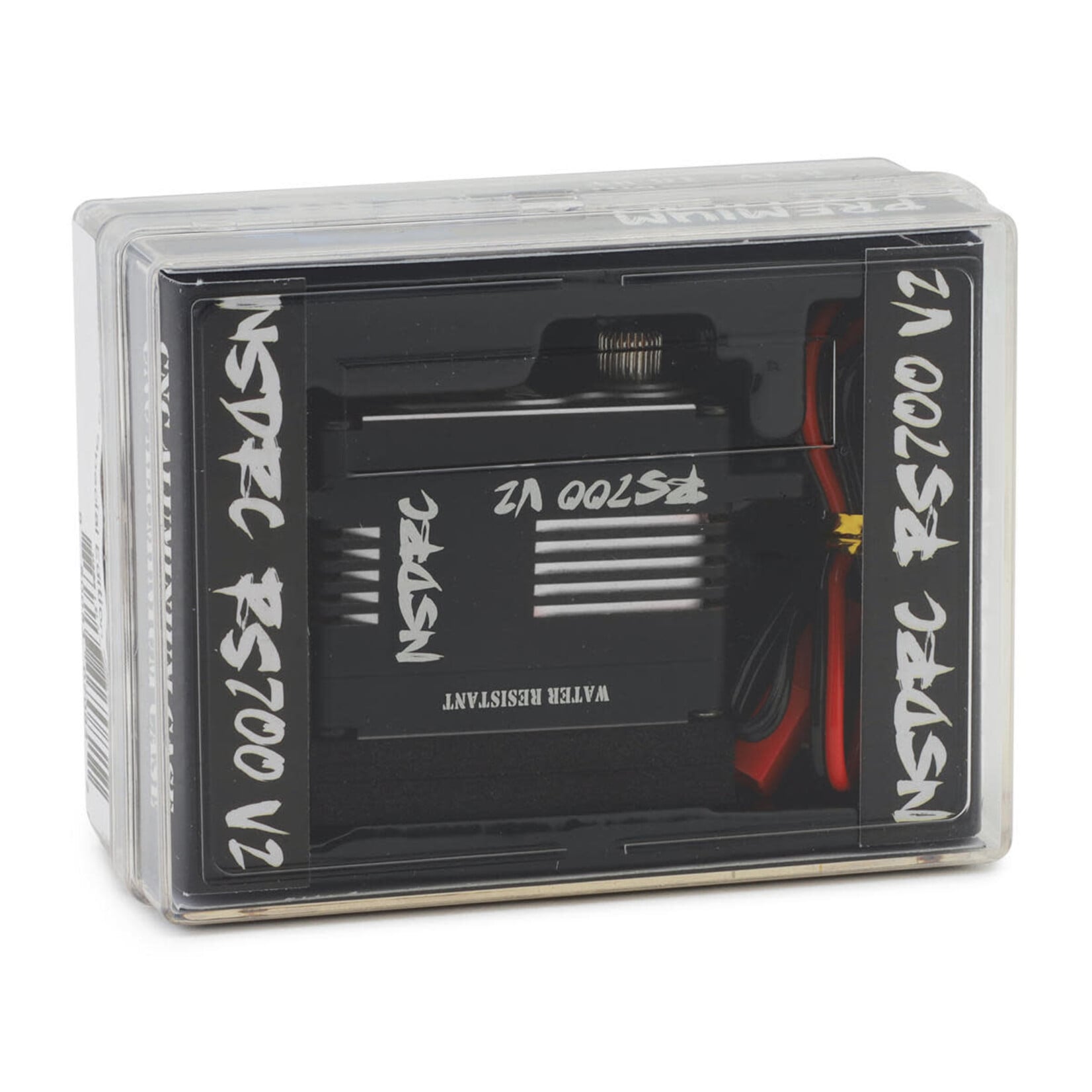

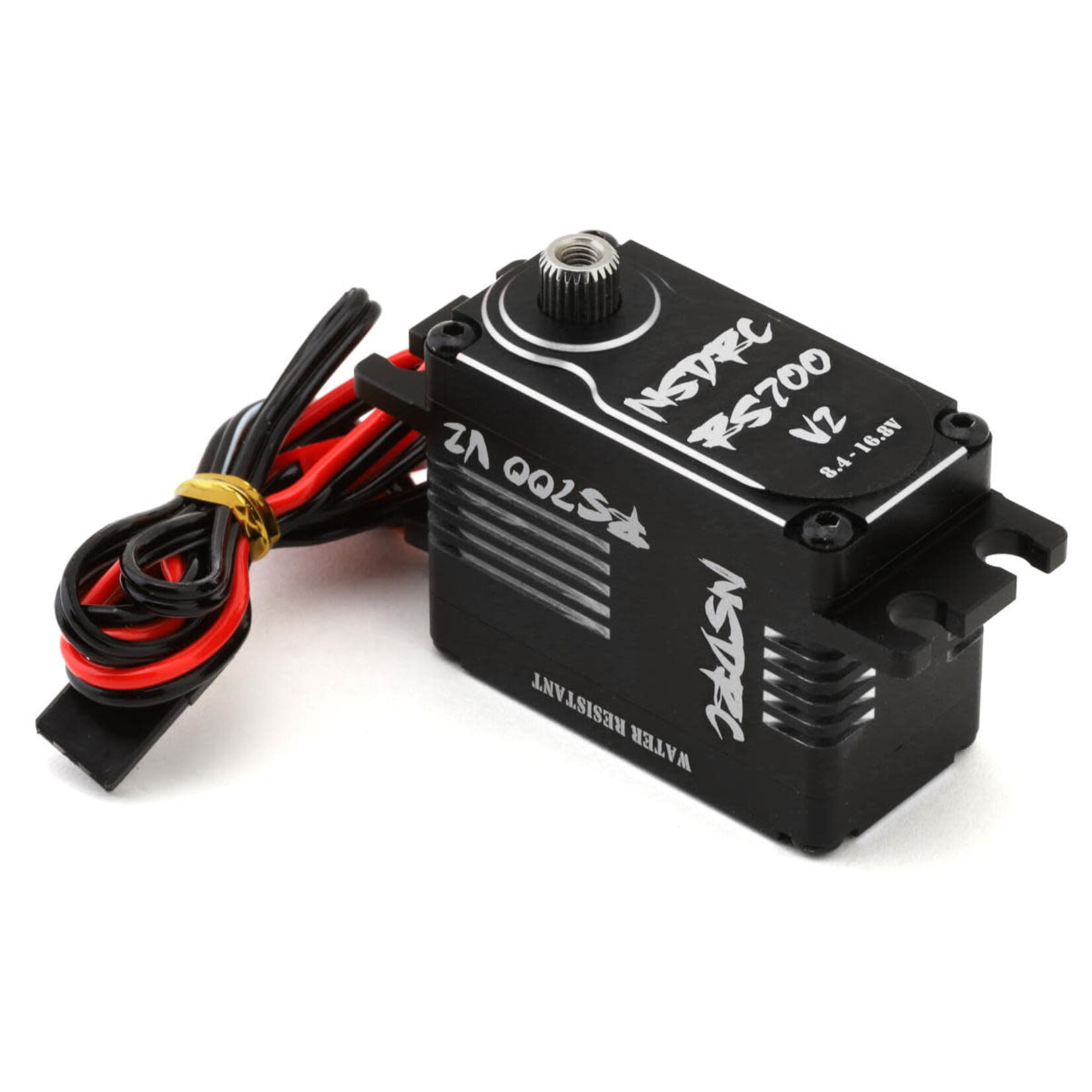

• (1) S700 V2 High Torque servo
• (1) Pre-wired 2-Pin JST plug

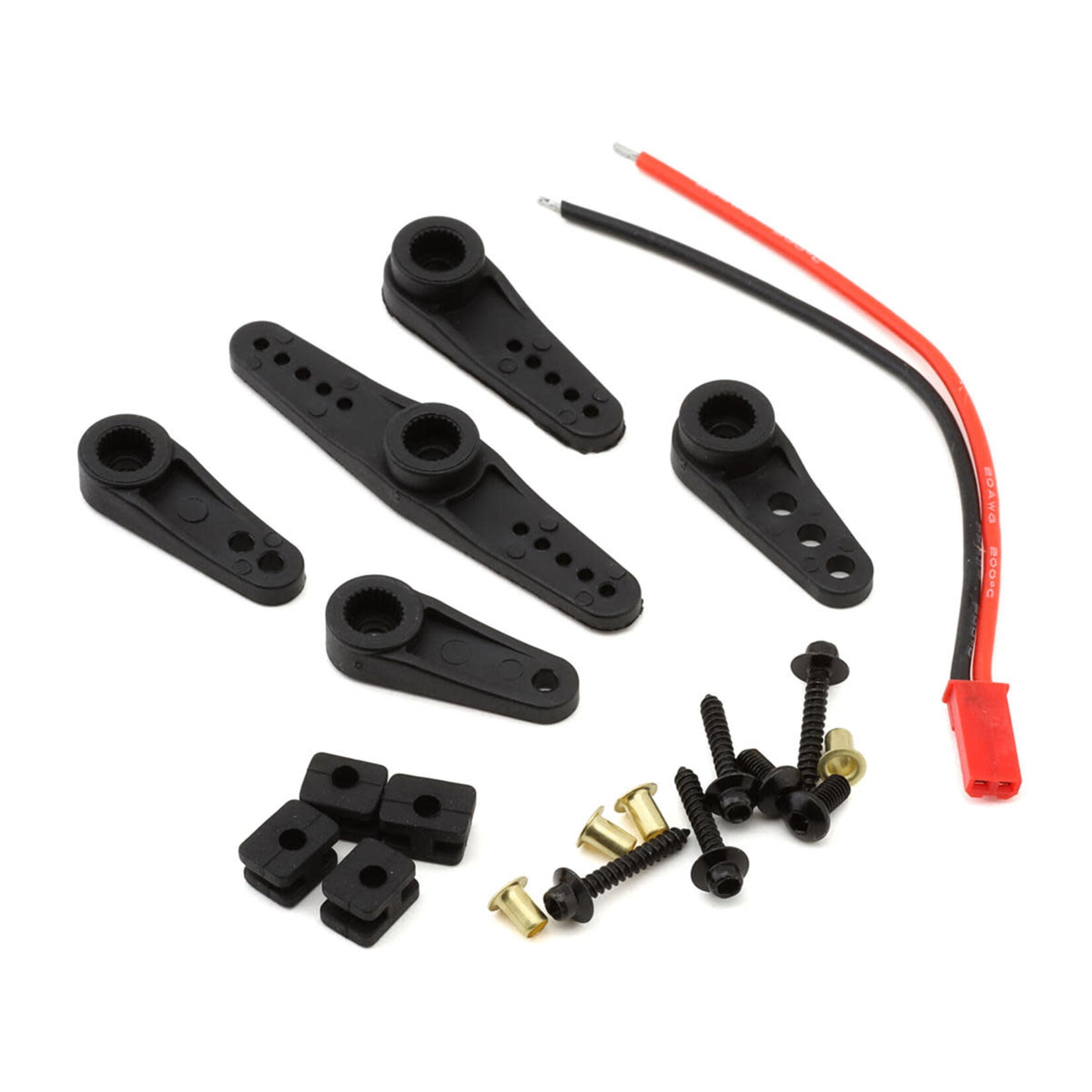

• Multiple composite horns
• Mounting screws, bushing and rubber grommets
