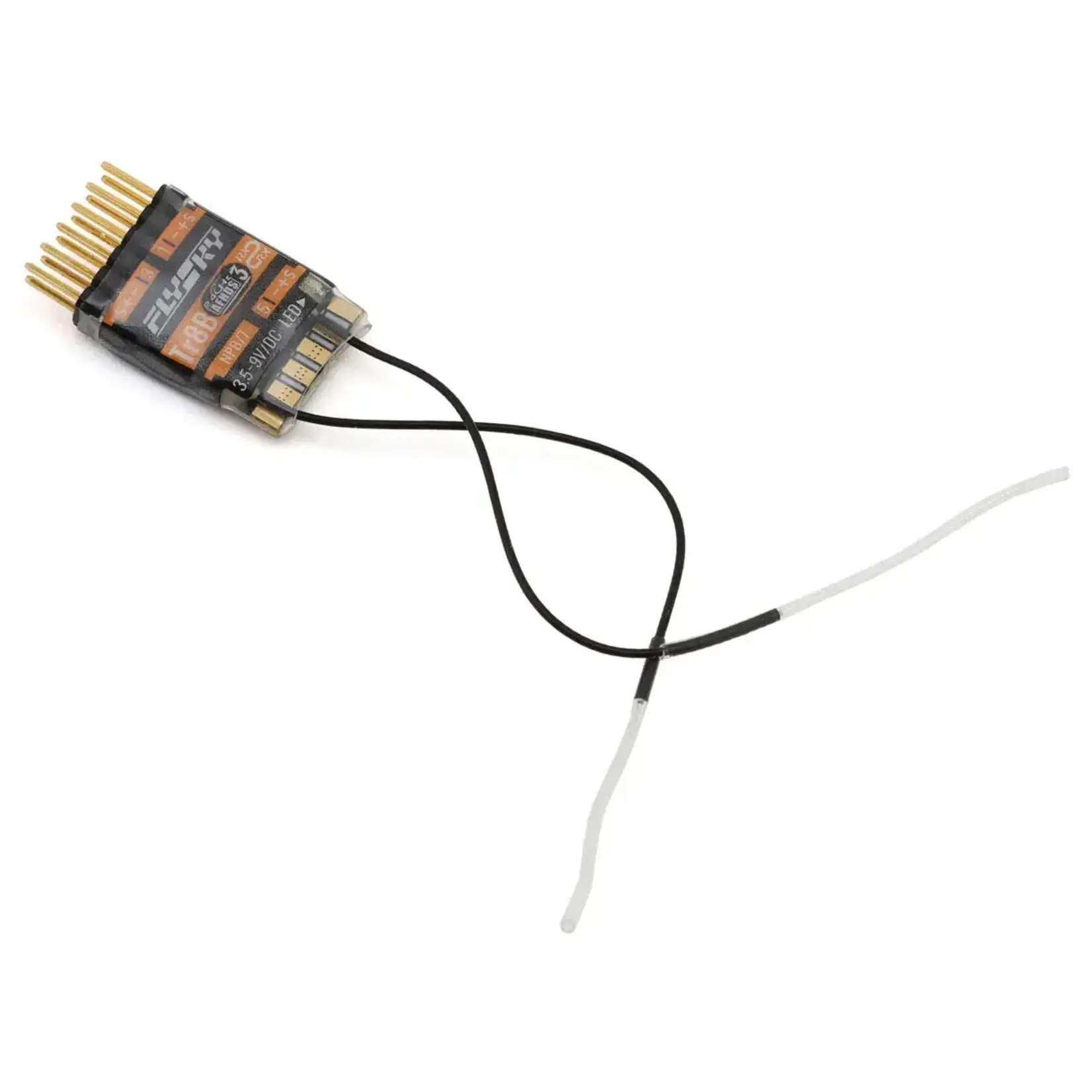

Tr8B Ultra Compact AFHDS 3 2.4GHz 8-Channel Air Receiver w/4 Pre-Installed Channels

SKU: TR8B

$34.99

Excl. tax

(0)

In stock (Delivery timeframe:Normally ships within 24 hours)

Features:

Ultra-compact design for tight installations
AFHDS 3 protocol delivers fast response and high stability
Four pre-installed channels with support for up to eight channels
Dual Ipex4 antennas for strong and reliable 2.4GHz signal
Bidirectional communication for telemetry and voltage feedback

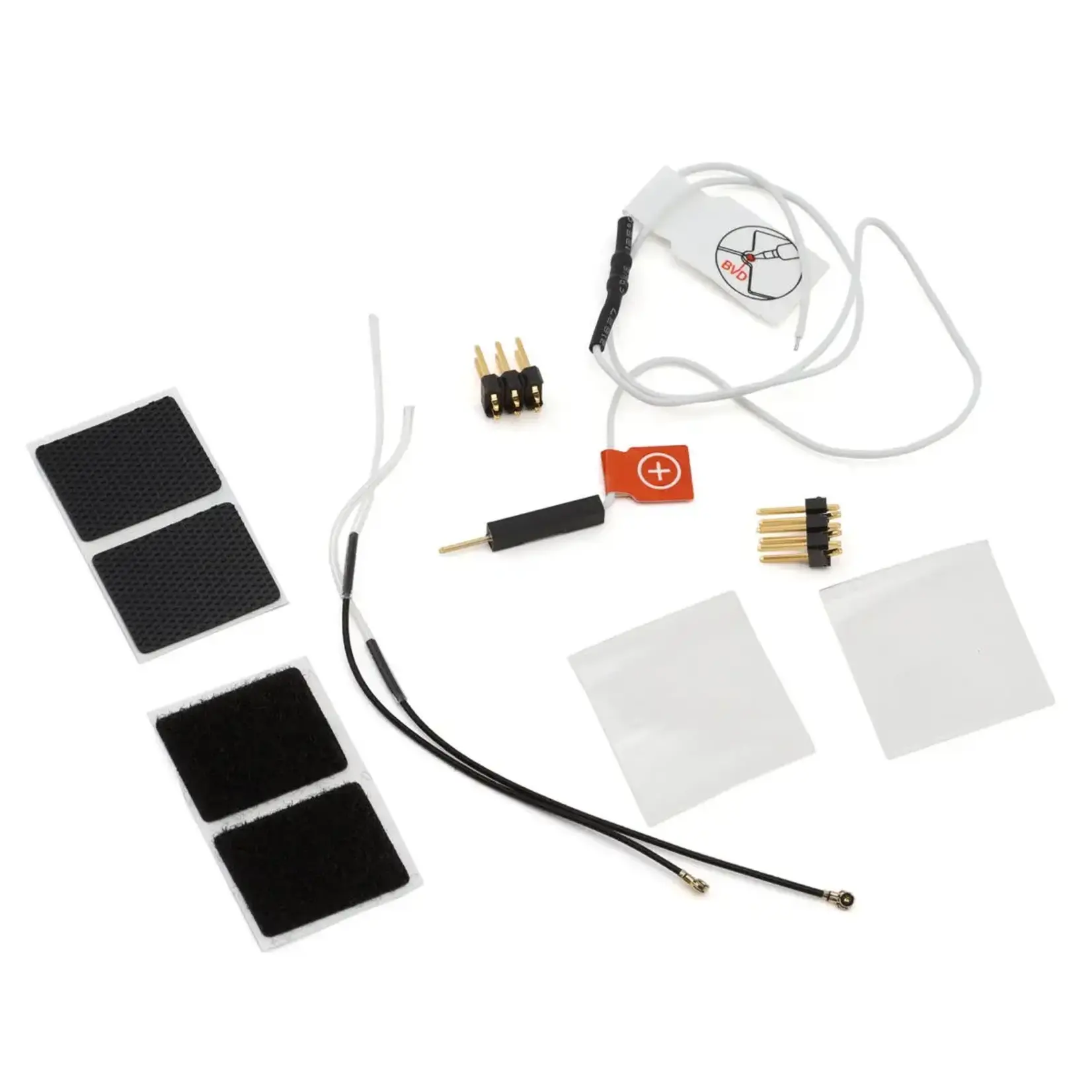

Includes:

(1) Tr8B Ultra Compact AFHDS 3 2.4GHz 8-Channel Air Receiver
(1) Wiring Harness
(2) Additional Pin Headers
(2) Heat Shrink Tubes
(2) Adhesive-Backed Hook & Loop Pieces
Product Manual

Specifications:

Channels	8 (4 Pre-Installed)
Frequency	2.4GHz
Protocol	AFHDS 3
Range	-
Data Output	PWM/PPM/i-BUS2/i-BUS/S.BUS
Input Power	3.5-9V
Dimensions	0.77x0.57x0.12in (19.5x14.6x3mm)
Weight	0.03oz (0.9g)

*Tech Note: This receiver is equipped with four PWM channels out of the box, and can be increased to eight by soldering the included pins.
